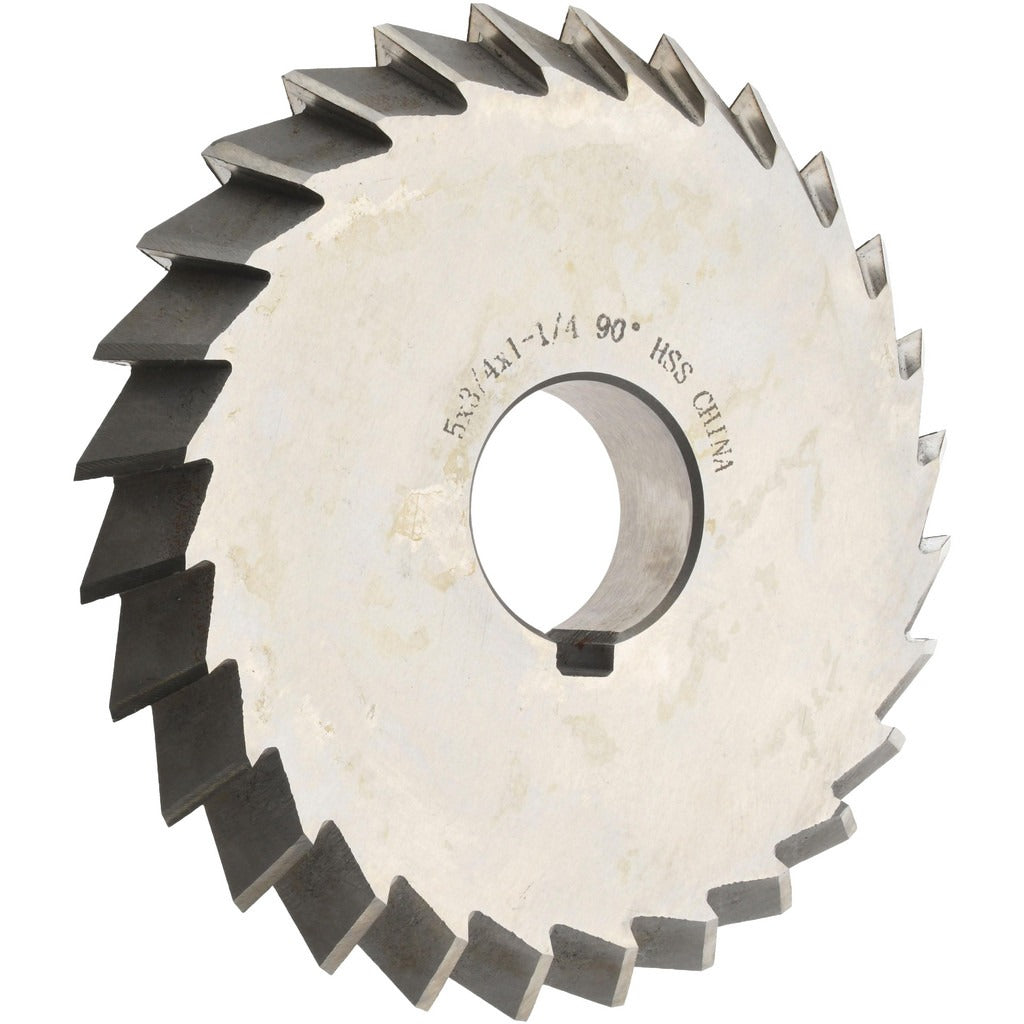

Value Collection 328-6534 Double Angle Milling Cutter 90 Deg Hss

Product Description

The VALUE COLLECTION 328-6534 is a double angle milling cutter designed for precision angular milling operations on manual and CNC milling machines. Built from high-speed steel (HSS) with a bright, uncoated finish, this cutter features a 90-degree included angle, a 5-inch cut diameter, and a 3/4-inch cutting width. It mounts via a standard 1-1/4-inch arbor hole. HSS construction provides adequate toughness for milling steel, aluminum, and non-ferrous materials in general-purpose shop applications. Machinists and tool-and-die professionals use this type of cutter for producing symmetrical V-slots, chamfers, and angular grooves in workpieces.

This double angle milling cutter is suited for job shop, production, and maintenance machining environments. It is appropriate for use on horizontal milling machines with standard arbor setups. The 90-degree included angle makes it a direct choice for cutting V-grooves and dovetail-adjacent profiles where a symmetrical angle is required on both sides of the cutter simultaneously. The 5-inch diameter allows for higher surface footage at moderate spindle speeds, which helps extend tool life when cutting harder workpiece materials.

Key Features

• 90-degree included angle for symmetrical V-groove and angular slot milling
• 5-inch cut diameter supports higher surface speed at lower RPM
• 3/4-inch cutting width for moderate-depth angular passes
• 1-1/4-inch arbor hole fits standard milling machine arbors
• High-speed steel construction offers toughness across a range of workpiece materials
• Bright, uncoated finish — suitable for general-purpose use without coating-related compatibility concerns

Compatibility

Designed for use with standard horizontal milling machine arbors accepting a 1-1/4-inch bore. Compatible with arbor-style setups on manual and CNC horizontal mills where a 90-degree double angle cutter with a 5-inch diameter is specified.

Installation Notes

Installation should be performed by a qualified machinist following the machine manufacturer's arbor assembly procedures. Ensure the machine spindle is fully powered down and locked out before mounting or removing the cutter. Secure the arbor nut to the torque specification listed in the machine's documentation. Always verify cutter runout with a dial indicator before beginning a cut to prevent premature tool wear or workpiece damage.
