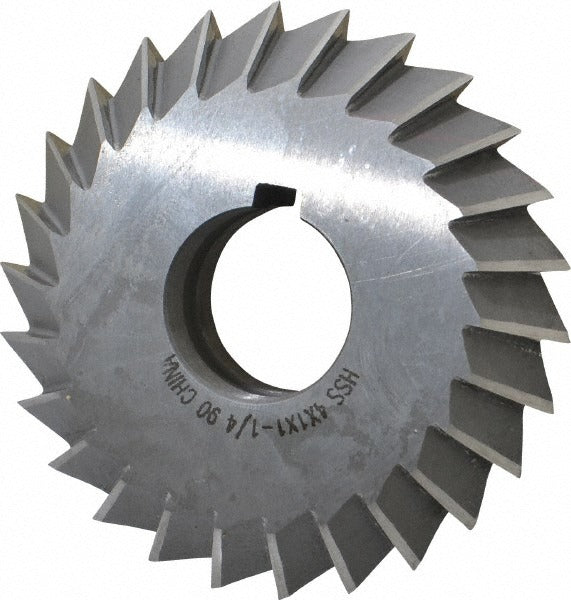

Value Collection 328-6468 Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION 328-6468 is a double angle milling cutter designed for precision angle milling operations on manual and CNC milling machines. Built from uncoated high speed steel (HSS), this cutter features a 90-degree included angle, a 4-inch cut diameter, and a 1-inch cutting width. The 1-1/4-inch arbor hole mounts directly to standard arbor setups. At 2.4 pounds, it is a solid, full-diameter cutter suited for cutting V-grooves, chamfers, and dovetail-adjacent profiles in steel, aluminum, and similar machinable materials. Machinists and toolroom operators are the primary users of this cutter type.

This cutter fits standard horizontal and universal milling machine setups where arbor-mounted tooling is required. The 90-degree included angle makes it well suited for symmetric V-groove cutting, deburring bevels, and chamfering operations across a range of workpiece materials. The uncoated HSS construction allows for resharpening, extending tool life in job shop and production environments where regrinding is standard practice.

Key Features

• 90-degree included angle for symmetric V-groove and chamfer cuts
• 4-inch cut diameter provides wide reach across the workpiece
• 1-inch cutting width for substantial material removal per pass
• 1-1/4-inch arbor hole fits standard milling machine arbors
• Uncoated high speed steel construction supports regrinding and resharpening
• Arbor connection type for rigid, concentric mounting on horizontal mills

Compatibility

Designed for use on horizontal and universal milling machines equipped with standard arbors accepting a 1-1/4-inch bore double angle milling cutter.

Installation Notes

Installation is performed by qualified machinists following standard arbor-mounting procedures. Power down and lock out the milling machine before mounting or removing the cutter. Ensure the arbor, spacers, and arbor support are clean and free of chips before seating the cutter. Always confirm arbor nut torque and cutter runout with a dial indicator before beginning a cut.
