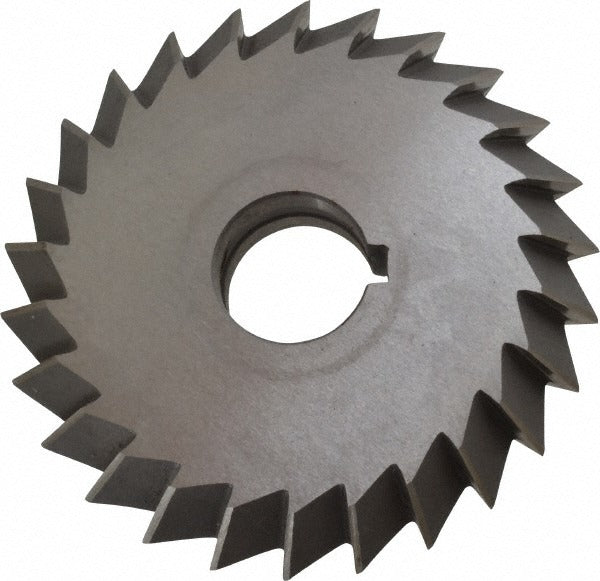

Value Collection 328-6435 Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION 328-6435 is a double angle milling cutter designed for precision angular groove and chamfer milling operations on manual and CNC milling machines. Built from uncoated high speed steel (HSS), it delivers consistent cutting performance across a wide range of ferrous and non-ferrous workpiece materials. The cutter features a 90-degree included angle, a 4-inch cut diameter, and a 3/4-inch cutting width, making it well suited for cutting symmetrical V-grooves and angular profiles in a single pass. It mounts via a standard 1-inch arbor hole and is sold individually.

This cutter is used in machine shops, toolrooms, and production environments where angular milling of slots, chamfers, and dovetail-style features is required. Typical applications include V-groove milling on steel and aluminum stock, fixture preparation, and prototype machining. It is appropriate for both light production runs and one-off toolroom work where a standard arbor-mounted HSS cutter meets the material and tolerance requirements.

Key Features

• 90-degree included angle for symmetric V-groove and chamfer milling
• 4-inch cut diameter provides wide radial reach on the arbor setup
• 3/4-inch cutting width covers the full groove profile in one pass
• High speed steel construction withstands the heat and interrupted cuts common in milling operations
• Uncoated finish — suitable for re-sharpening by a standard tool grinder
• 1-inch arbor hole fits common milling machine arbor sizes

Compatibility

Designed for use with standard horizontal and universal milling machines equipped with a 1-inch milling arbor.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the milling machine spindle before mounting or removing the cutter. Secure the cutter on a clean, burr-free arbor with appropriate spacers and collars, and torque the arbor nut according to the machine manufacturer's specifications. Inspect the cutter for chips or cracks before each use.
