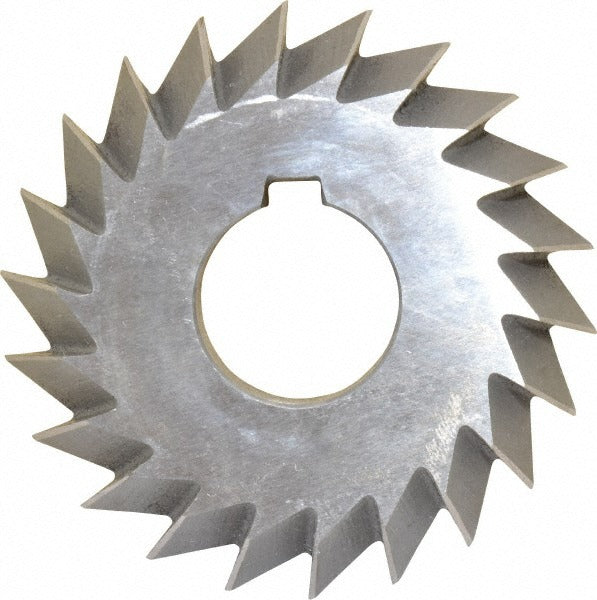

Value Collection 328-6328 Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION 328-6328 is a double angle milling cutter designed for machining symmetric V-slots, chamfers, and angular grooves on milling machines using an arbor-style setup. Built from high speed steel (HSS) with an uncoated finish, this cutter delivers reliable performance across a range of ferrous and non-ferrous materials. It features a 90-degree included angle, a 3-inch cut diameter, a 5/8-inch cutting width, and a 1-inch arbor hole for secure mounting. Machinists and tool-and-die professionals use this type of cutter for dovetail prep work, angular form milling, and chamfer operations on manual and CNC horizontal milling machines.

This cutter is suited for job shop, production machining, and maintenance environments where arbor-mounted angle cutters are required. The 90-degree geometry is a standard angle used in dovetail slide machining, V-groove cutting, and general angular milling applications. It is appropriate for use on horizontal milling machines and compatible arbor setups where a 1-inch bore is the standard mounting interface. Machinists working with steel, aluminum, brass, and similar materials will find this a practical general-purpose option for angular form work.

Key Features

• 90-degree included angle for standard dovetail, V-groove, and chamfer milling
• 3-inch cut diameter provides wide reach across the workpiece
• 5/8-inch cutting width for defined angular slot or chamfer depth
• 1-inch arbor hole fits standard horizontal milling machine arbors
• High speed steel construction offers toughness and re-sharpenability
• Uncoated finish suitable for use with cutting fluids on a broad range of materials

Compatibility

Designed as an arbor-mounted double angle milling cutter compatible with horizontal milling machine setups using a 1-inch arbor diameter.

Installation Notes

Installation should be performed by a qualified machinist following standard milling machine setup procedures. Power down and lock out the milling machine before mounting or removing any arbor tooling. Ensure the arbor, spacers, and cutter bore are clean and free of burrs before assembly, and torque the arbor nut to the machine manufacturer's specification. Always verify spindle direction and cutter rotation before engaging the workpiece.
