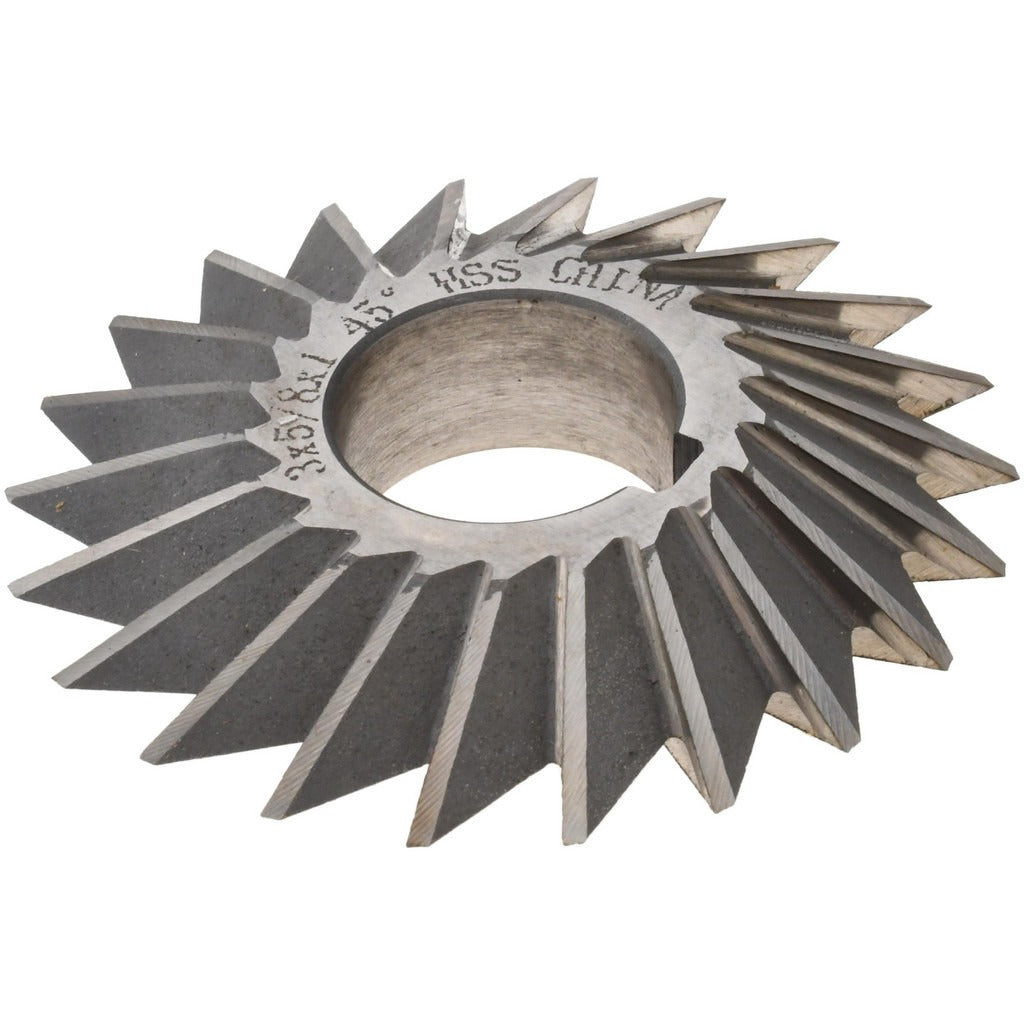

Value Collection 328-4328 Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION 328-4328 is a double angle milling cutter designed for precision symmetrical groove and chamfer milling on metalworking machines. Built from uncoated high speed steel, it handles interrupted cuts and general-purpose milling operations where carbide tooling is not required. The cutter features a 45-degree included angle, a 3-inch cut diameter, and a 5/8-inch cutting width, making it well suited for producing V-grooves, dovetail relief cuts, and angular chip breaker profiles. It mounts via a standard 1-inch arbor hole. At 3 pounds, the mass reflects a robust tool body capable of withstanding the feed forces typical of horizontal and universal milling setups.

This cutter is intended for use on horizontal milling machines equipped with arbor-style tooling. Typical applications include production and maintenance machining of steel, cast iron, aluminum, and other machinable alloys. The bright uncoated finish makes it straightforward to resharpen on a tool and cutter grinder, extending service life in job shop environments. Machinists, tool and die makers, and maintenance trades working with arbor mills will find this cutter appropriate for standard angular milling tasks.

Key Features

• 45-degree included angle for symmetrical V-groove and chamfer milling
• 3-inch cut diameter provides stable, large-diameter cutting engagement
• 5/8-inch cutting width suited for medium-width groove and angular profile work
• High speed steel construction allows resharpening and extended tool life
• Bright uncoated finish — no coating buildup to affect regrind geometry
• 1-inch arbor hole fits standard horizontal mill arbors

Compatibility

Designed as an arbor-mounted milling cutter compatible with horizontal and universal milling machines accepting a 1-inch arbor diameter.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's arbor assembly procedures. Ensure the milling machine is fully powered down and the spindle is locked before mounting or removing the cutter. Use proper arbor spacers, collars, and a draw bolt torqued to the machine specification to prevent cutter movement during operation. Always confirm cutter rotation direction matches the machine spindle direction before engaging the workpiece.
