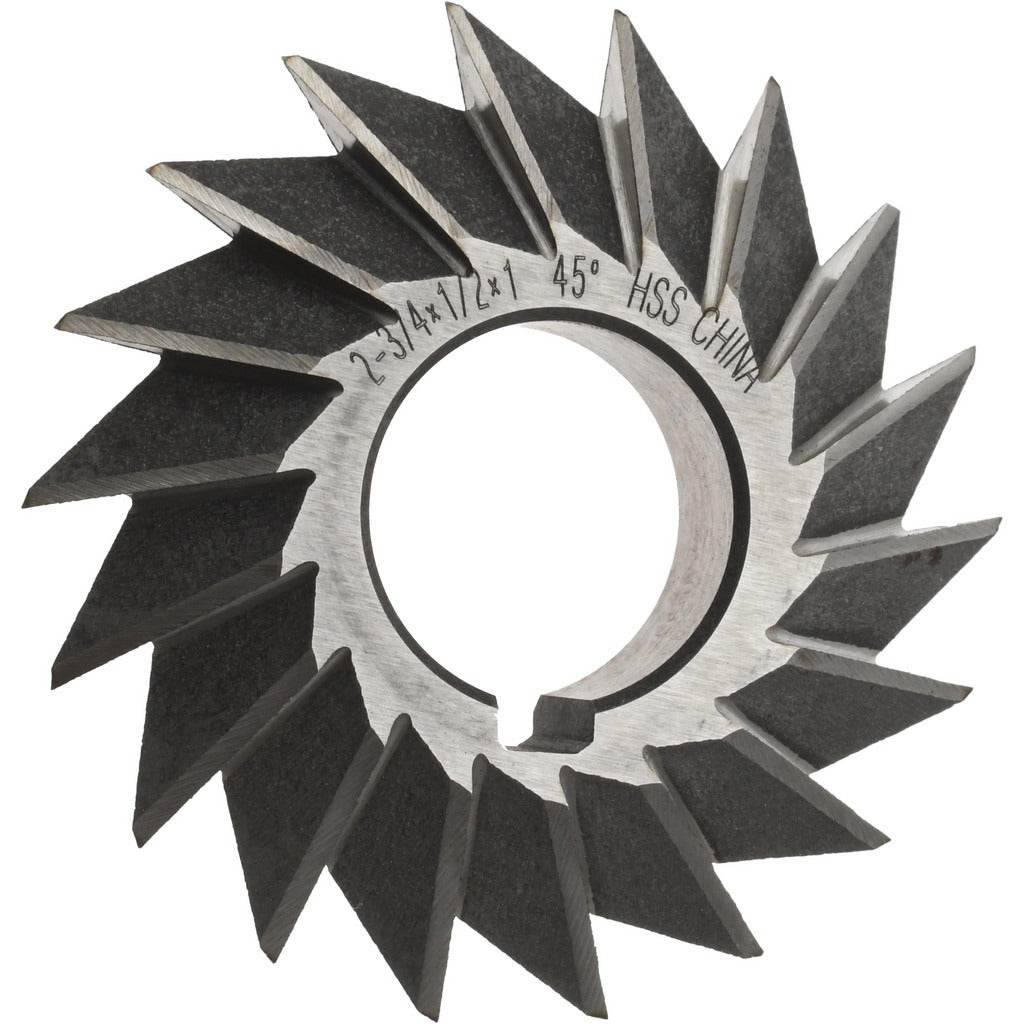

Value Collection 328-4211 Double Angle Milling Cutter 45 Deg Hss

Product Description

The VALUE COLLECTION 328-4211 is a double angle milling cutter designed for arbor-mount machining operations requiring a symmetrical 45-degree included angle. Ground from high speed steel (HSS) with a bright, uncoated finish, it delivers consistent cutting geometry across a 2.75-inch cutter diameter and a 0.5-inch cutting width. The 1-inch arbor hole provides a solid, centered mount on standard milling arbors. This cutter is suited for producing V-grooves, chamfers, and angular profiles in a variety of ferrous and non-ferrous workpiece materials. It is typically installed and operated by machinists and toolroom professionals on horizontal or universal milling machines.

This double angle cutter is appropriate for production and toolroom environments where precise angular milling is required. The 45-degree included angle makes it well suited for chamfering edges, cutting dovetail-adjacent profiles, and forming symmetric V-slots. The uncoated HSS construction allows for resharpening, extending the serviceable life of the tool when properly maintained. It is intended for use on arbor-type milling machine setups in both job shop and light production settings.

Key Features

• 45-degree included angle for symmetric angular milling and chamfering
• 2.75-inch cutter diameter for broad radial engagement
• 0.5-inch cutting width suits narrow groove and profile applications
• 1-inch arbor hole diameter for standard milling arbor compatibility
• High speed steel construction allows resharpening and extended tool life
• Bright uncoated finish — no coating concerns when regrinding

Compatibility

Designed for use on horizontal and universal milling machines equipped with standard 1-inch arbors. Connection type is arbor mount.

Installation Notes

Installation is performed by a qualified machinist. Before mounting, ensure the milling machine spindle is fully powered down and locked out per standard LOTO procedures. Seat the cutter squarely on the arbor, confirm all spacers and collars are clean and free of burrs, and torque the arbor nut to the machine manufacturer specification. Verify cutter runout with a dial indicator before initiating a cut.
