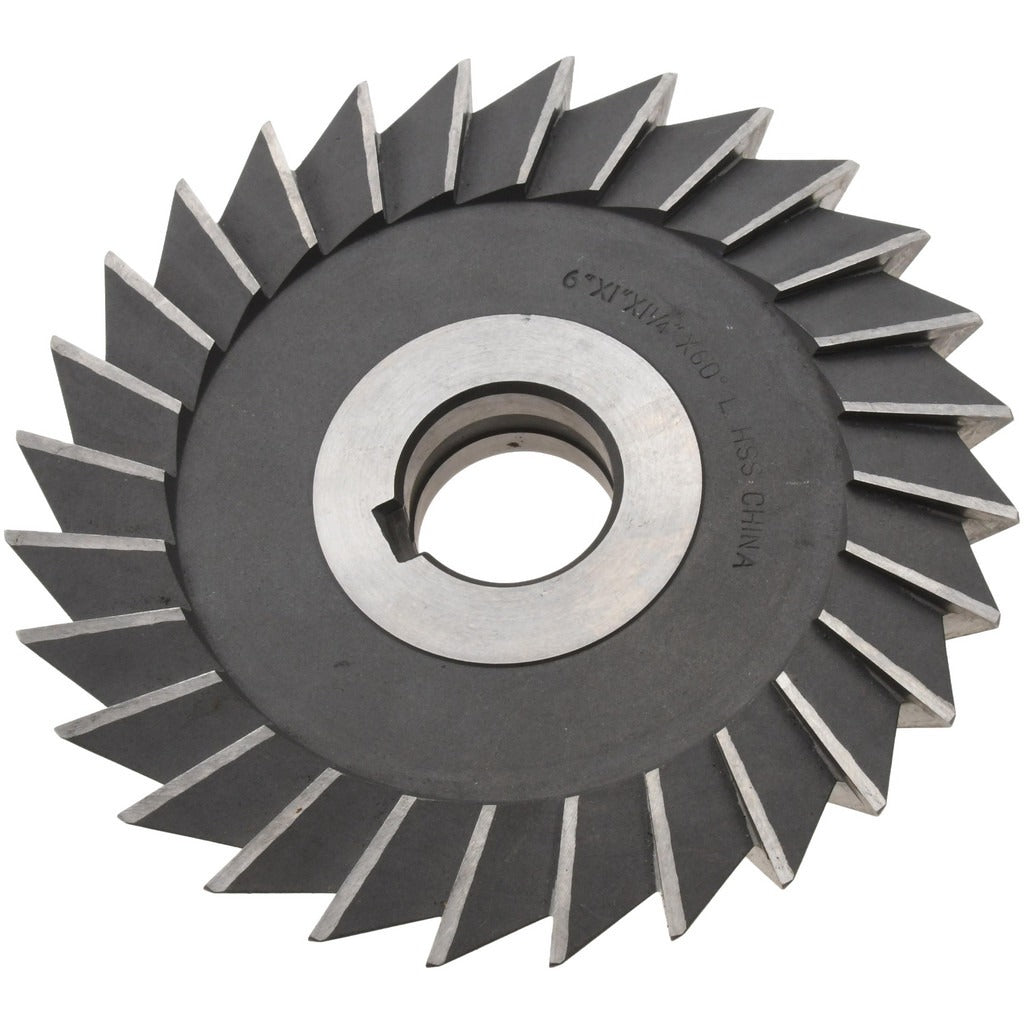

Value Collection 328-3649 Single-angle Milling Cutter

Product Description

The VALUE COLLECTION 328-3649 is a single-angle milling cutter designed for precision chamfering, bevel cutting, and angular milling operations on metalworking machine tools. Built from high speed steel with an oxide finish, this cutter delivers consistent cutting performance on a range of ferrous and non-ferrous materials. It measures 6 inches in diameter and 1 inch in cutting width, with a 60-degree included angle. The 1-1/4 inch arbor hole accommodates standard arbor-mount setups. At 5.25 pounds, this is a substantial, production-grade tool suited for machinist and toolroom use.

This cutter is suited for horizontal and universal milling machine applications where angular or chamfer profiles must be generated on workpiece edges or faces. The left-hand cutting direction makes it appropriate for climb-cut configurations or setups where a right-hand cutter would produce unfavorable chip load or deflection. A 1/32 inch corner radius reduces stress concentration at the cutting edge. It is typically installed and operated by machinists, toolroom technicians, and CNC setup personnel in manufacturing, job shop, and maintenance environments.

Key Features

• 60-degree included angle for chamfer and bevel milling operations
• High speed steel construction for durability across a range of workpiece materials
• Oxide finish for corrosion resistance and reduced friction at the cutting edge
• Left-hand cutting direction for specific machine and fixturing requirements
• 1/32 inch corner radius to reduce edge chipping and stress concentration
• Arbor-mount connection compatible with standard 1-1/4 inch arbor hole tooling setups

Compatibility

Designed for use on horizontal and universal milling machines equipped with a standard arbor and 1-1/4 inch arbor hole tooling. Specific machine model compatibility should be verified against the machine spindle and arbor specifications prior to installation.

Installation Notes

This cutter is installed by qualified machinists or toolroom technicians familiar with arbor-mount milling setups. Before mounting, power down and lock out the milling machine per applicable OSHA lockout/tagout procedures. Ensure the arbor, spacers, and drawbar are clean and free of burrs before seating the cutter. Verify that cutter rotation direction matches the machine spindle direction before engaging the cut.
