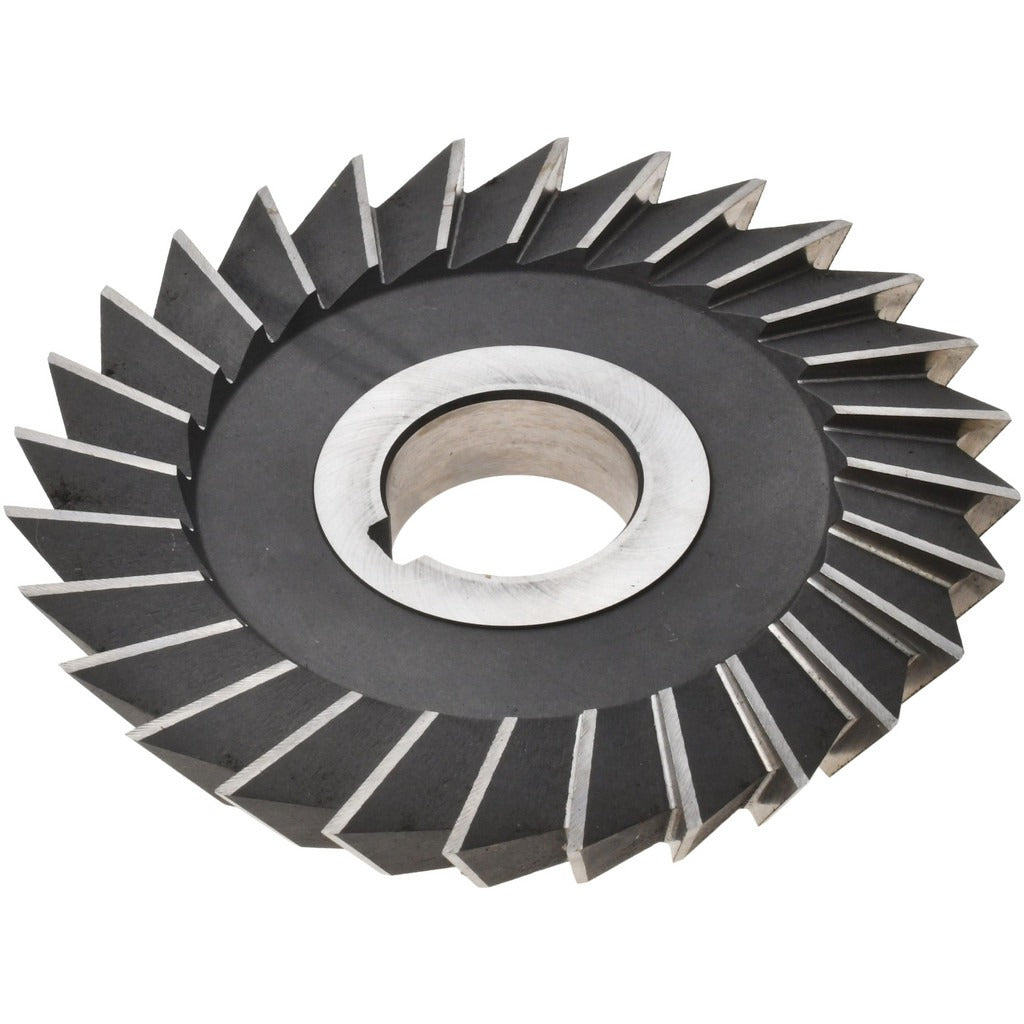

Value Collection 328-3532 Single-angle Milling Cutter 5 in

Product Description

The VALUE COLLECTION 328-3532 is a single-angle milling cutter designed for precision angle milling operations on metalworking machinery. Made from high speed steel (HSS), this uncoated cutter features a 60-degree included angle and a 5-inch cutter diameter, making it suited for cutting chamfers, bevels, and angular grooves. The left-hand cutting direction is a critical specification for setups requiring climb-cut or reverse-spindle configurations. It mounts via a standard arbor connection with a 1.25-inch arbor hole diameter and includes a 1/32-inch corner radius to reduce stress concentration at the cutting edge. Installation and operation are handled by machinists and tool-and-die professionals.

This cutter is used in horizontal milling machine setups across manufacturing, toolroom, and production machining environments. The 5-inch diameter and arbor-mount design make it appropriate for medium to large milling machines capable of accommodating the cutter mass and torque requirements. The left-hand cutting direction limits compatibility to machines configured for reverse spindle rotation or specific arbor setups. Typical applications include angular face milling, dovetail preparation, and chamfer generation on ferrous and non-ferrous workpieces.

Key Features

• 60-degree included angle for precise angular milling and chamfer work
• 5-inch cutter diameter suitable for medium to large horizontal milling machines
• High speed steel construction provides toughness across a range of workpiece materials
• Left-hand cutting direction for reverse-spindle or specialized arbor configurations
• 1.25-inch arbor hole diameter with standard arbor connection for secure mounting
• Uncoated finish — suitable for use with cutting fluids across general metalworking applications

Compatibility

Designed as an OEM-style replacement or direct-use single-angle cutter for horizontal milling machines accepting a 1.25-inch arbor and configured for left-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist familiar with arbor-mount cutter setup procedures. Ensure the milling machine spindle is fully stopped and locked out before mounting or removing the cutter. Verify spindle rotation direction matches the left-hand cutting specification of this cutter before engaging the workpiece. Use appropriate arbor spacers, collars, and drawbar torque practices per the machine manufacturer's guidelines.
