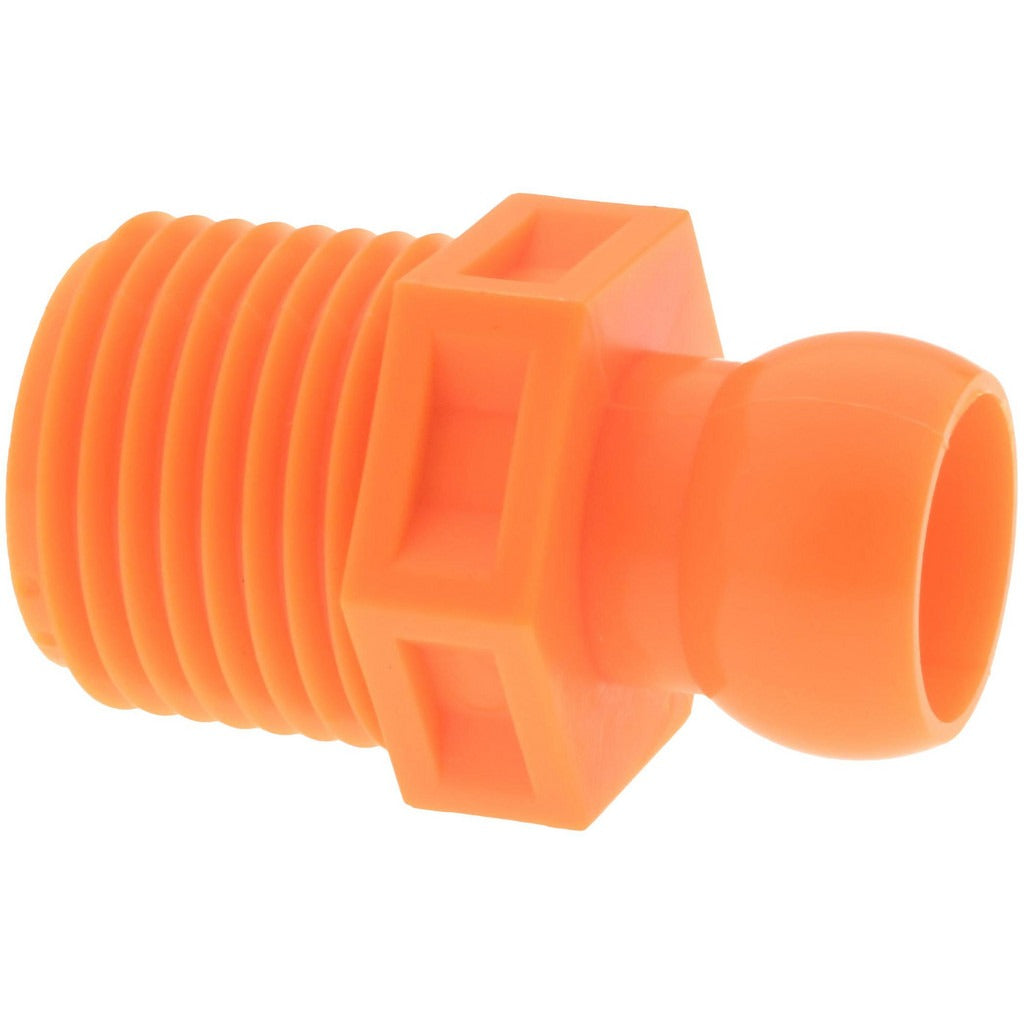

Value Collection 3202(BSPT)x4 Pipe Thread Connector 4-pack

Product Description

The VALUE COLLECTION 3202(BSPT)x4 is a pipe thread connector designed for use in modular coolant hose systems. It features a male x female connection type with a 3/8-inch hose inside diameter and a 1/2-inch BSPT thread size. The body is constructed from POM (polyoxymethylene), a rigid engineering thermoplastic that offers chemical resistance and dimensional stability in fluid-handling applications. This connector is suited for assembly and maintenance work on Snap Flow Modular Hose systems. It ships in a pack of four, making it a practical choice for technicians stocking common fittings. Rated to a maximum working pressure of 43.51 psi.

This connector is intended for use with Snap Flow Modular Hose System installations where coolant lines require a threaded pipe connection point. Typical applications include machine tool coolant delivery, CNC equipment, and similar industrial fluid-distribution setups where modular hose segments terminate at a fixed threaded port. The BSPT thread standard is common in equipment manufactured to British or metric thread specifications. Each unit measures approximately 1.43 inches in height, 0.87 inches in width, and 1 inch in length, making it compact enough for tight routing arrangements.

Key Features

• POM body construction provides chemical resistance and rigid structural support in coolant environments
• Male x female connection type for in-line or directional routing within modular hose assemblies
• 3/8-inch hose inside diameter compatible with standard Snap Flow Modular Hose segments
• 1/2-inch BSPT thread size for connection to British Standard Pipe Taper threaded ports
• Rated to 43.51 psi maximum working pressure
• Pack of 4 units per order for efficient restocking and multi-point installations

Compatibility

Designed for use with the Snap Flow Modular Hose System. Suitable for threaded ports conforming to the BSPT 1/2-inch thread standard.

Installation Notes

Install and service performed by qualified maintenance technicians or machinists. Shut off coolant flow and depressurize the system before disconnecting or installing any fittings. Do not exceed the rated maximum pressure of 43.51 psi in service. Verify thread engagement is complete and the hose segment is fully seated before returning the system to operation.
