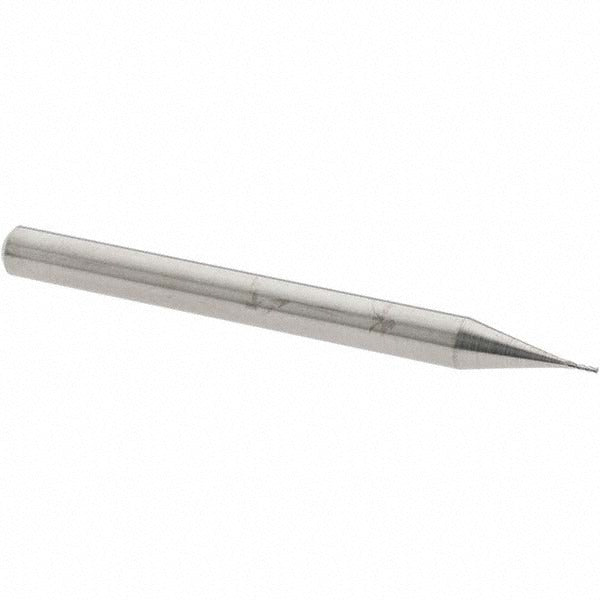

Value Collection 32001 Square End Mill 1/64 in 4 Flute Carbide

Product Description

The VALUE COLLECTION 32001 is a solid carbide square end mill designed for precision milling in tight-tolerance applications. With a 1/64 inch (0.0156 inch) cutting diameter and a 3/64 inch (0.0469 inch) length of cut, this end mill is built for micro-milling work where accuracy and rigidity matter. The four-flute, right-hand spiral design provides clean material removal with a 30-degree helix angle. Micrograin carbide construction delivers hardness and wear resistance suited to ferrous and non-ferrous workpiece materials. The bright, uncoated finish makes it straightforward to inspect for wear after use.

This end mill is suited for CNC machining centers and manual mills where very small cutting diameters are required. Typical applications include slotting, profiling, and pocketing in aluminum, brass, steel, and similar materials at small feature scales. The 1/8 inch shank diameter fits standard collets found in most machining setups, and the 1-1/2 inch overall length keeps the tool rigid during cuts. Machinists working on mold components, die work, prototype parts, and small mechanical assemblies will find this geometry appropriate for their workflow.

Key Features

• 1/64 inch cutting diameter (0.0156 inch) for micro-milling applications
• Solid micrograin carbide construction for hardness and edge retention
• Four-flute, right-hand cut with right-hand spiral flute for efficient chip evacuation
• 30-degree helix angle for smooth cutting action
• Centercutting design allows plunge entry
• Bright, uncoated finish for easy wear inspection
• Regular-length geometry with 1/8 inch square shank for standard collet compatibility

Compatibility

Designed as an OEM-style replacement or standard tooling selection for CNC machining centers and manual mills accepting a 1/8 inch shank collet. Part of the Series 3200 square end mill family.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully in a clean, properly sized collet or end mill holder before use, and verify runout before beginning a cut. Follow machine manufacturer guidelines for spindle speed and feed rate based on workpiece material and depth of cut. Inspect the cutting edges and shank for damage before each use.
