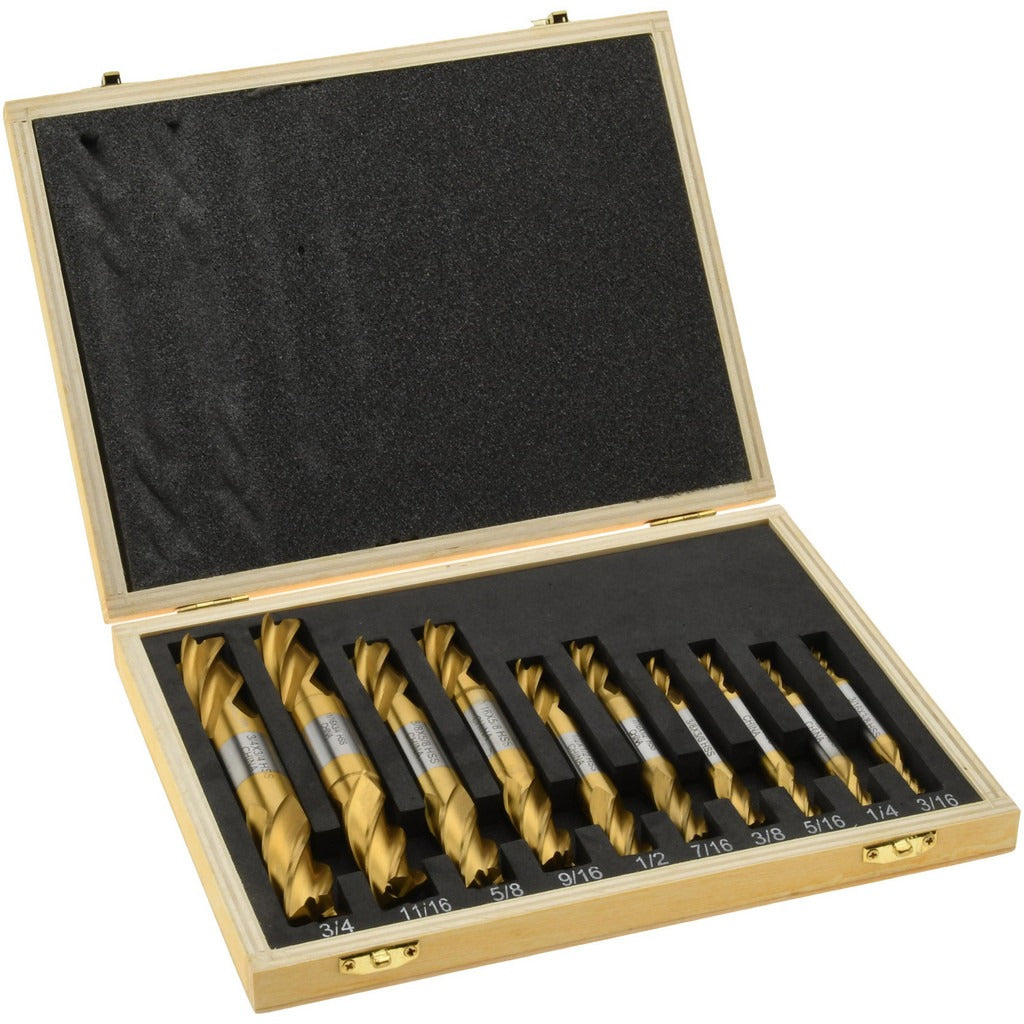

Value Collection 320-8002 End Mill Set 10 Piece Tin Hss

Product Description

The VALUE COLLECTION 320-8002 is a 10-piece double-end end mill set designed for milling operations in metal fabrication, tooling, and machining shops. Each end mill is manufactured from M2 high speed steel with a titanium nitride (TiN) coating, which extends tool life and reduces friction during cutting. The set covers a diameter range of 3/16 inch to 3/4 inch, giving machinists a versatile selection for slotting, profiling, and contouring work. Each cutter features a 4-flute, square end geometry for clean, flat-bottom cuts. The set ships in a fitted wood case for organized storage and tool protection.

This set is suited for general-purpose milling on steel, cast iron, aluminum, and similar materials in both manual and CNC machine tool applications. The double-end design effectively doubles usable tool life per piece, making it a practical choice for production shops and maintenance machinists alike. The regular-length flute configuration fits standard toolholders and collet chucks common in vertical milling machines and machining centers.

Key Features

• 10-piece set covering 3/16 inch to 3/4 inch diameter range
• M2 high speed steel construction for toughness and wear resistance
• Titanium nitride (TiN) coating reduces heat buildup and extends tool life
• 4-flute, square end geometry produces flat-bottom slots and profiles
• Double-end design provides two cutting ends per tool
• Includes fitted wood storage case for organized tool access

Compatibility

Designed for use in standard vertical milling machines, knee mills, and CNC machining centers equipped with collet chucks or end mill holders sized to accept the included diameter range of 3/16 inch to 3/4 inch.

Installation Notes

End mills should be installed by a qualified machinist following the toolholder manufacturer's clamping specifications. Ensure the spindle is fully de-energized and locked out before changing tooling. Inspect each cutting end for chipping or wear before use, and verify runout with a dial indicator after seating in the holder. Apply appropriate cutting fluid or coolant for the workpiece material to preserve coating integrity and tool life.
