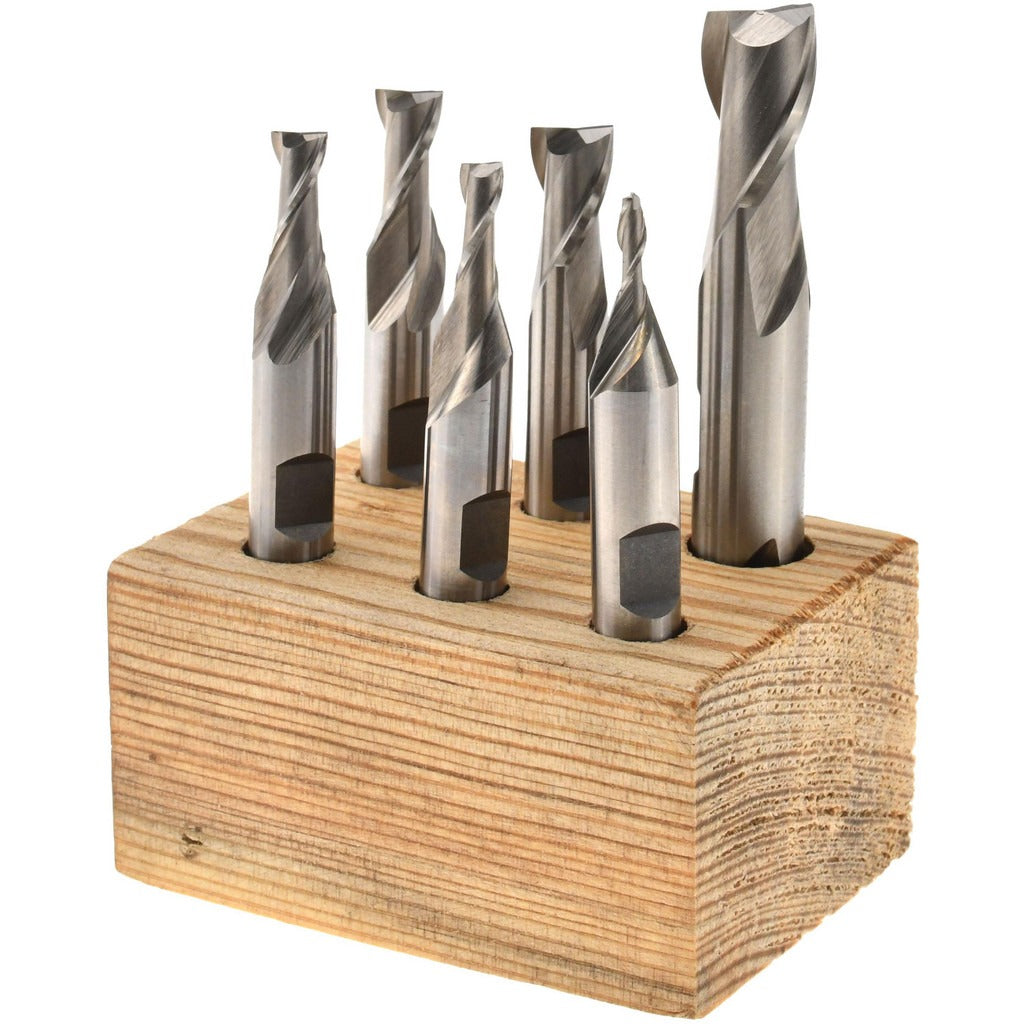

Value Collection 320-2226 End Mill Set Hss 6 Piece

Product Description

The VALUE COLLECTION 320-2226 is a 6-piece, double-end, 2-flute square end mill set made from M2 high speed steel with a bright uncoated finish. Each end mill features a square end geometry suited for general-purpose milling, slotting, and profiling operations on a range of workpiece materials. The set includes six diameters spanning 1/8 inch through 1/2 inch, giving machinists the most common sizes in a single package. The double-end design extends usable tool life by providing a second cutting end when the first shows wear. The set weighs 1.2 pounds and ships in a wood stand for organized storage at the machine or bench.

This set is appropriate for job shops, maintenance machining, and toolroom applications where a range of standard milling diameters is needed without purchasing individual end mills. The regular-length configuration suits typical knee mill, vertical machining center, and benchtop CNC setups. Diameters included are 1/8 inch, 3/16 inch, 1/4 inch, 5/16 inch, 3/8 inch, and 1/2 inch, covering the most frequently called-for sizes in light to medium milling work on steel, aluminum, and similar materials.

Key Features

• M2 high speed steel construction for good wear resistance across a broad range of workpiece materials
• 2-flute geometry provides efficient chip evacuation in slotting and plunge applications
• Double-end design delivers two usable cutting ends per tool, extending service life
• Bright uncoated finish suitable for general-purpose use without added coating cost
• Six diameters included: 1/8, 3/16, 1/4, 5/16, 3/8, and 1/2 inch
• Wood storage stand included to keep tools organized and protected

Compatibility

Designed for use in standard end mill holders and collet chucks sized to accept the shank diameters included in this set, as used on vertical knee mills, benchtop CNC machines, and similar milling equipment.

Installation Notes

End mills should be installed by a qualified machinist following the machine tool manufacturer's toolholder torque and runout specifications. Ensure the spindle is fully stopped and locked out before changing tooling. Inspect each end mill for chipping or wear before use, and select the appropriate speed and feed parameters for the workpiece material and diameter in use. Double-end tools should be handled carefully to protect the inactive cutting end during storage and changeover.
