Value Collection 3194788 Flange Gasket 6 Inch Pipe

Product Description

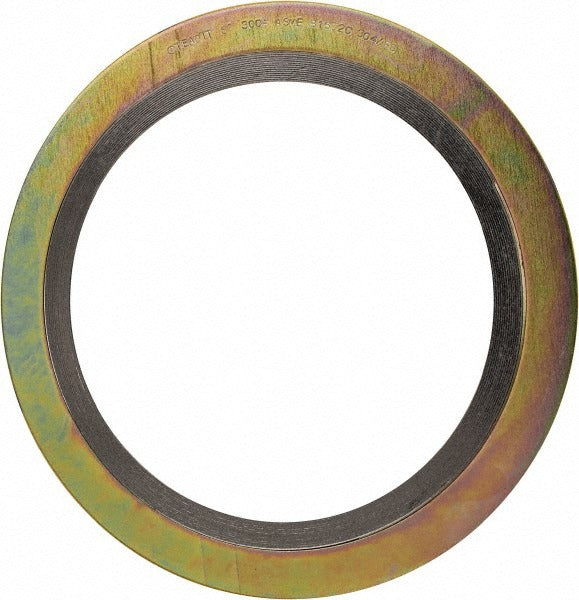

The VALUE COLLECTION 3194788 is a flange gasket engineered for use with 6-inch nominal pipe size flanged connections. It features an inside diameter of 7-3/16 inches and an outside diameter of 9-7/8 inches, with a flange diameter of 8-1/4 inches. Constructed from carbon steel and stainless steel, this gasket is rated for a wide service temperature range from -440 degrees F to 850 degrees F, making it suitable for demanding industrial and commercial piping applications. Licensed plumbers and pipefitters install this type of component to create leak-free seals at flanged joints in process, HVAC, and utility piping systems.

This gasket is intended for use at 6-inch flanged pipe joints in commercial and industrial installations. Typical applications include process piping, steam lines, and fluid handling systems where reliable sealing across a broad temperature range is required. The carbon steel and stainless steel construction makes it appropriate for environments where both mechanical strength and corrosion resistance are priorities. Each unit is sold individually.

Key Features

• 6-inch nominal pipe size fitment with 7-3/16 inch ID and 9-7/8 inch OD
• 8-1/4 inch flange diameter for proper seating at standard flanged connections
• Carbon steel and stainless steel construction for strength and corrosion resistance
• Wide service temperature range: -440 degrees F to 850 degrees F
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as an OEM-style replacement or new-installation gasket for standard 6-inch nominal pipe size flanged connections in commercial and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes such as the IPC or ASME B31 piping standards. Depressurize and isolate the piping system completely before removing any existing flange hardware or gaskets. Inspect flange faces for damage or corrosion prior to seating the new gasket. Do not reuse a compressed gasket — always install a new gasket when reassembling flanged joints.
