Value Collection 31945330 Aramid Gasket Sheet 60x60 in

Product Description

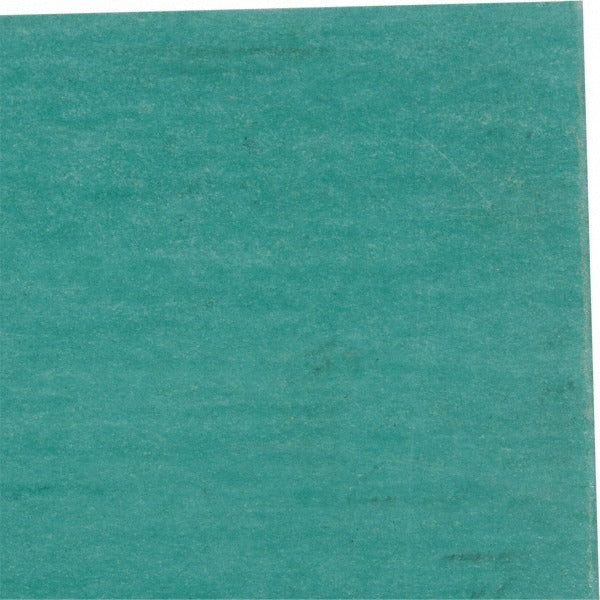

The VALUE COLLECTION 31945330 is a large-format aramid fiber gasket sheet used for cutting custom gaskets in industrial, mechanical, and plumbing applications. Measuring 60 inches wide by 60 inches long with a thickness of 0.125 inches, this sheet provides ample material for fabricating multiple gaskets from a single piece. The aramid construction supports a maximum working pressure of 1450 psi and a maximum temperature of 750 degrees F, making it appropriate for demanding sealing environments involving steam, hot water, fuels, and chemical media. Plumbers, pipefitters, and industrial maintenance technicians typically work with this material.

This gasket sheet is suited for high-temperature and high-pressure sealing applications in commercial plumbing, process piping, HVAC equipment, and industrial machinery. Technicians cut gaskets to match flange faces, valve bodies, pump housings, and heat exchanger connections. The 60-inch by 60-inch format accommodates large flange profiles and allows efficient nesting of multiple patterns. The green color aids in visual identification on the job site and distinguishes this material grade from lower-rated sheet stock.

Key Features

• Aramid fiber construction rated to 750 degrees F maximum temperature
• Maximum working pressure of 1450 psi for demanding sealing service
• Large 60 inches x 60 inches sheet accommodates oversized or multiple gasket cuts
• Uniform 0.125 inch thickness for consistent flange seating and compression
• Green color provides easy material-grade identification in the field
• Full sheet format minimizes waste when cutting multiple gasket profiles

Compatibility

Designed as a general-purpose aramid gasket sheet for fabricating custom sealing components in high-temperature, high-pressure piping and mechanical systems where operating conditions reach up to 750 degrees F and 1450 psi.

Installation Notes

Gasket fabrication and installation should be performed by a qualified pipefitter, plumber, or mechanical technician. De-energize, depressurize, and cool the system fully before removing existing gaskets or installing new ones. Use sharp gasket cutters or hole saws appropriate for aramid fiber material to produce clean edges and accurate profiles. Consult applicable codes such as ASME B16.21 or relevant piping specifications for flange gasket dimensions and compression requirements.
