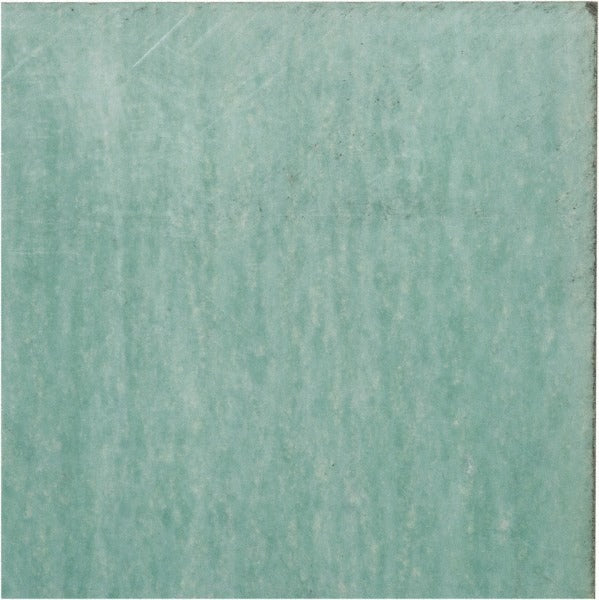

Value Collection 31945215 Aramid Gasket Sheet 30x30 in

Product Description

The VALUE COLLECTION 31945215 is a full-face aramid gasket sheet designed for use in high-temperature, high-pressure sealing applications across plumbing, HVAC, and industrial piping systems. Measuring 30 inches in length and 30 inches in width with a thickness of 0.125 inches (1/8 inch), this sheet provides ample material for cutting custom gaskets to fit flanges, valves, and other mating surfaces. Rated to 750 degrees F and 1450 psi, the aramid construction handles demanding service conditions where rubber or cork materials would fail. The green color aids visual identification during fabrication and installation.

This gasket sheet is suited for residential and commercial mechanical applications where custom or semi-custom gasket fabrication is required. Typical use cases include high-temperature steam lines, hot water piping flanges, and industrial process equipment connections. Installers can cut the sheet to match flange dimensions using standard gasket cutting tools or a sharp utility knife and straight edge. No specific model compatibility is required, as the sheet format is intended for field fabrication.

Key Features

• Aramid fiber construction rated for service up to 750 degrees F
• Maximum working pressure of 1450 psi for demanding sealing environments
• Full 30 x 30 inch sheet allows multiple custom gasket cuts from a single piece
• Uniform 1/8 inch thickness for consistent flange sealing
• Green color for easy material identification during fabrication

Compatibility

Designed as a general-purpose aramid gasket sheet for field fabrication; suitable for cutting to fit flanges, valves, and mating surfaces in high-temperature and high-pressure piping and mechanical systems.

Installation Notes

Gasket fabrication and installation from sheet stock is typically performed by licensed plumbers, pipefitters, or HVAC technicians. Shut down and depressurize the system fully before removing any existing gaskets or disassembling flanged connections. Use appropriate cutting tools to achieve clean, accurate profiles that match the flange face. Follow applicable codes such as the IPC or ASME B31 piping standards for flange assembly and torque sequencing.
