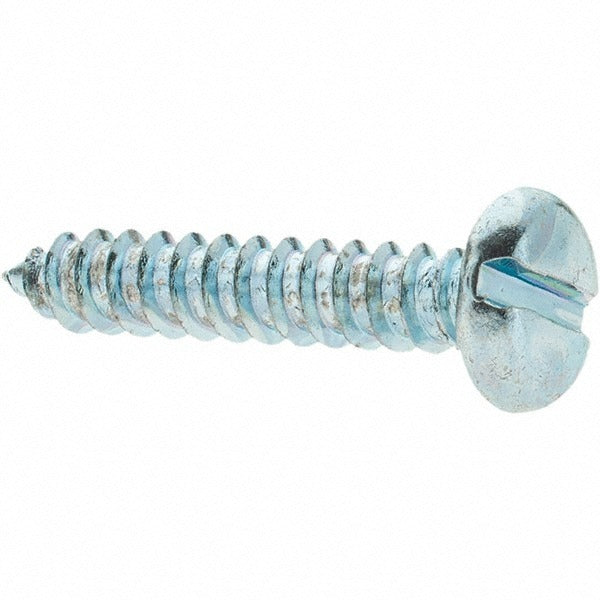

Value Collection 31746 No. 10 Pan Head Sheet Metal Screw

Product Description

The VALUE COLLECTION 31746 is a No. 10 pan head sheet metal screw designed for fastening sheet metal and light-gauge materials in HVAC, electrical, and general trade applications. It features a slotted drive and a Type AB point, which combines a tapered tip for easy starting with coarse thread spacing suited for thin metal and pre-drilled or punched holes. The screw measures 1 inch in length under head and is manufactured from Grade 2 steel with a zinc-plated finish that provides basic corrosion resistance in dry indoor environments. This fastener is sold in a minimum order quantity of 50 pieces.

This screw is commonly used by HVAC technicians for securing duct flanges, junction box covers, equipment panels, and sheet metal enclosures. Electricians use pan head sheet metal screws for attaching electrical boxes and cover plates to light-gauge metal framing or enclosures. The pan head profile provides a wide bearing surface and low-profile sit that works well in applications where a flush or near-flush finish is needed against sheet metal surfaces.

Key Features

• No. 10 thread size with Type AB point for self-starting in thin sheet metal and pre-punched holes
• Pan head profile offers a wide bearing surface and low-profile installation
• Slotted drive compatible with standard flat-blade screwdrivers and power driver bits
• 1 inch length under head suits typical sheet metal panel and enclosure thicknesses
• Zinc-plated Grade 2 steel construction provides standard indoor corrosion resistance
• Minimum order quantity of 50 pieces ensures adequate supply for production or service work

Compatibility

Designed as a standard No. 10 pan head sheet metal screw suitable for light-gauge steel panels, duct work, electrical enclosures, and equipment covers where a slotted Type AB fastener is specified.

Installation Notes

Installation is performed with a flat-blade screwdriver or a slotted power driver bit. Always match the pilot hole or punch diameter to the thread size per the fastener manufacturer recommendation to avoid stripping. For HVAC ductwork, follow SMACNA guidelines for screw spacing and sealing requirements. Do not overtighten in thin-gauge material, as pan head sheet metal screws can pull through or strip threads in light-gauge stock if excessive torque is applied.
