Value Collection 315070001 Tig Torch Collet Body 1/8 Inch

Product Description

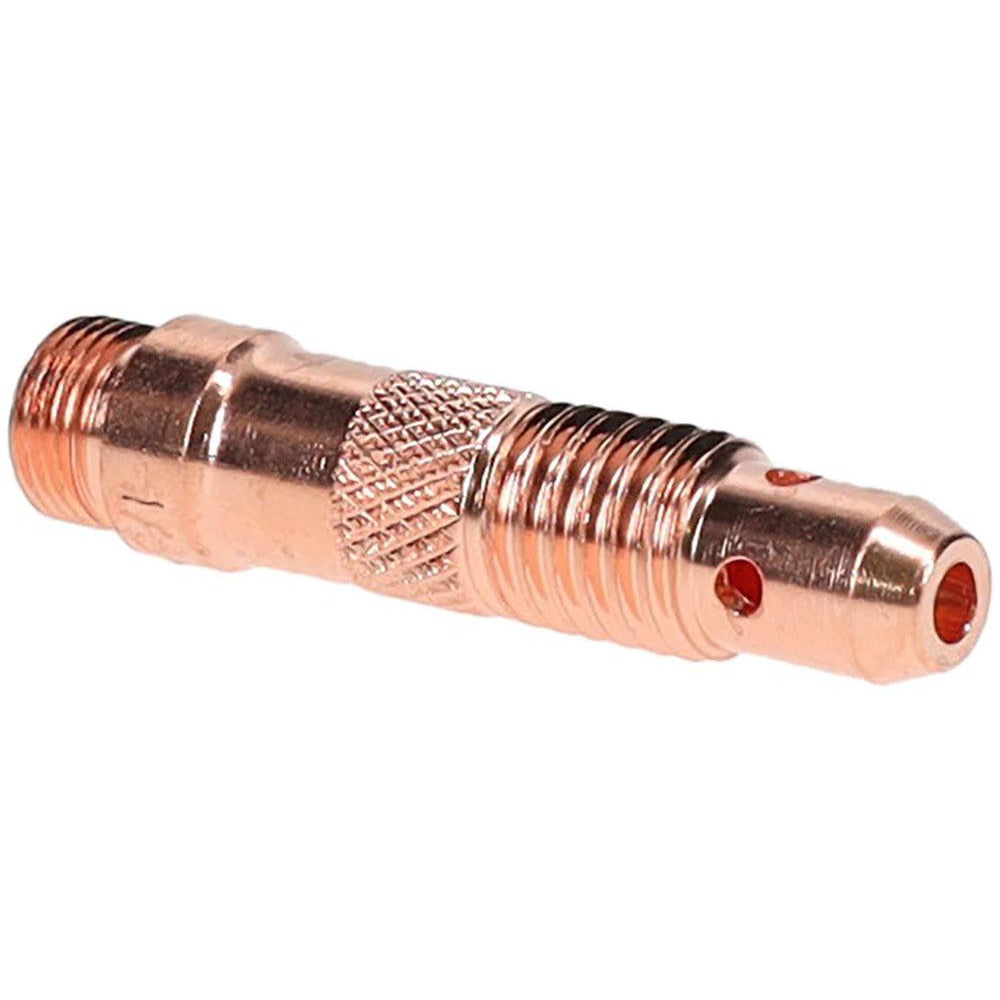

The VALUE COLLECTION 315070001 is a 1/8 inch TIG torch collet body designed to hold and align the tungsten electrode in air-cooled TIG welding torches. The collet body serves as the internal sleeve that mates with the collet and back cap assembly, maintaining precise electrode concentricity during the weld. At 0.1 pounds, this is a lightweight consumable replacement part built to industry standard No. 10N28 geometry. Welders and HVAC service technicians performing pipe brazing or precision welding work will keep spares on hand as routine consumables.

This collet body is suited for TIG welding applications where a 1/8 inch tungsten electrode is in use. It is compatible with torches designated as Series 18 and Series 26, which are among the most widely used air-cooled TIG torch platforms in light industrial, maintenance, and field service environments. Typical applications include stainless steel fabrication, tubing welds, and precision joint work requiring controlled heat input.

Key Features

• 1/8 inch bore sized for standard 1/8 inch tungsten electrodes
• Meets industry standard No. 10N28 dimensional specification
• Compatible with Series 18 and Series 26 TIG torches
• Lightweight consumable at 0.1 pounds for easy field stocking
• Sold individually for single-unit replacement needs

Compatibility

Designed as an OEM-style replacement collet body for Series 18 and Series 26 TIG torches using a 1/8 inch tungsten electrode, conforming to industry standard No. 10N28.

Installation Notes

Installation is performed by a qualified welder or technician. Always power down the welding machine and allow it to fully de-energize before disassembling the torch head. Remove the back cap, collet, and nozzle before replacing the collet body. Verify the replacement collet body bore size matches the tungsten diameter in use before reassembling to avoid electrode misalignment or arcing issues.
