Value Collection 315060022 Tig Torch Collet 1/8 Inch

Product Description

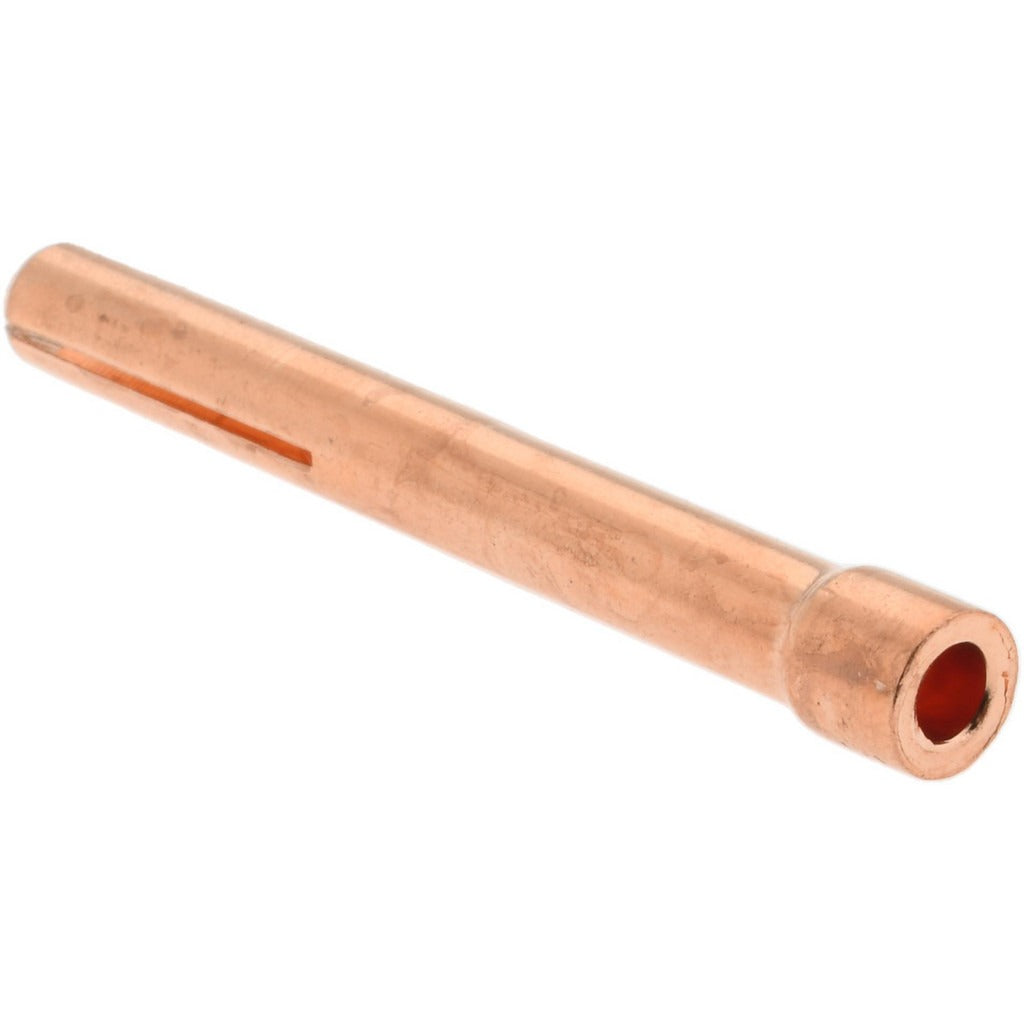

The VALUE COLLECTION 315060022 is a 1/8 inch TIG torch collet designed to hold tungsten electrodes securely within the collet body of a TIG welding torch. The collet is the consumable clamping component that grips the tungsten and maintains electrical contact during the welding arc. Proper collet fit is critical to arc stability and electrode alignment. This collet is sized for 1/8 inch tungsten and is manufactured to industry standard No. 10N25 dimensions, making it a direct-fit replacement for worn or damaged collets in compatible torch bodies. It is installed by welding technicians and fabricators performing TIG welding on steel, stainless, and aluminum.

This collet is suited for use with industry-standard TIG torch bodies including the 17, 18, and 26 series torches commonly found in fabrication shops, maintenance facilities, and industrial welding operations. The 1/8 inch size accommodates the corresponding tungsten electrode diameter used in a wide range of general-purpose TIG welding applications on both air-cooled and water-cooled torch configurations that accept this collet form factor.

Key Features

• 1/8 inch bore size for secure grip on matching tungsten electrode diameter
• Manufactured to industry standard No. 10N25 dimensions
• Compatible with 17, 18, and 26 series TIG torch bodies
• Lightweight consumable at approximately 0.015 pounds for easy handling and quick changeover
• Direct-fit replacement collet for routine torch maintenance

Compatibility

Suitable for use with TIG torch series 17, 18, and 26. Conforms to industry standard No. 10N25 collet dimensions.

Installation Notes

TIG torch collets are installed and replaced by qualified welders or welding equipment technicians. Before servicing the torch, disconnect the torch from the welder and ensure the machine is powered off. Unthread the torch cap and remove the collet body to access and replace the collet. Avoid overtightening the back cap, as this can deform the collet and cause inconsistent tungsten grip.
