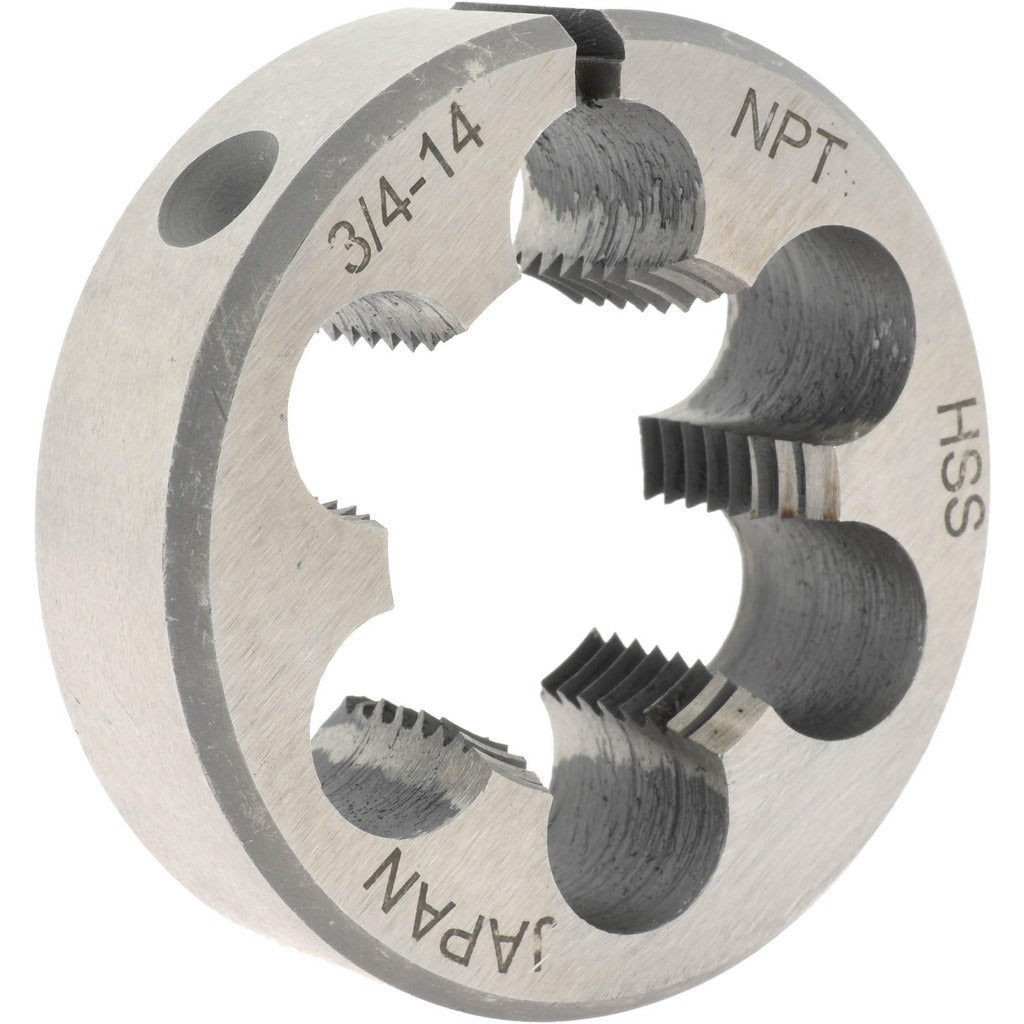

Value Collection 315-2136 Adjustable Pipe Die 3/4-14 Npt

Product Description

The VALUE COLLECTION 315-2136 is a round adjustable pipe die designed to cut 3/4-14 NPT external threads on pipe stock. Built from high-speed steel, it delivers the hardness and heat resistance needed for production threading in trade and shop environments. The 2-inch outside diameter fits standard round die stocks that accept 2-inch dies. The adjustable design allows the operator to fine-tune thread fit and compensate for tool wear, extending usable die life. Right-hand thread direction is standard for NPT pipe work. This die is used by plumbers, pipefitters, and mechanical contractors threading pipe for gas, water, and general mechanical systems.

This die is suited for threading schedule 40 and schedule 80 pipe in residential and commercial plumbing, HVAC hydronic piping, gas distribution, and industrial mechanical applications. It cuts 3/4-14 NPT threads, which are the standard thread form for 3/4-inch nominal pipe size connections. Typical install scenarios include field fabrication of threaded pipe assemblies and shop production threading operations where a hand-operated or benchtop die stock is used.

Key Features

• 3/4-14 NPT thread form for standard 3/4-inch nominal pipe size threading
• Adjustable design allows thread fit tuning and compensates for die wear
• High-speed steel construction provides hardness and heat resistance during cutting
• 2-inch outside diameter fits standard 2-inch round die stocks
• Right-hand thread direction matches standard NPT pipe assembly orientation

Compatibility

Designed for use in standard round die stocks accepting a 2-inch outside diameter die. Cuts 3/4-14 NPT right-hand threads on pipe stock sized for 3/4-inch nominal pipe.

Installation Notes

This die is installed and operated by plumbers, pipefitters, and mechanical contractors using a compatible round die stock. Secure the die firmly in the die stock before threading and apply appropriate cutting oil throughout the operation to reduce heat and extend die life. Inspect the die for chips or damage before each use. Follow applicable codes such as the International Fuel Gas Code or International Plumbing Code for thread engagement requirements on the specific piping system being assembled.
