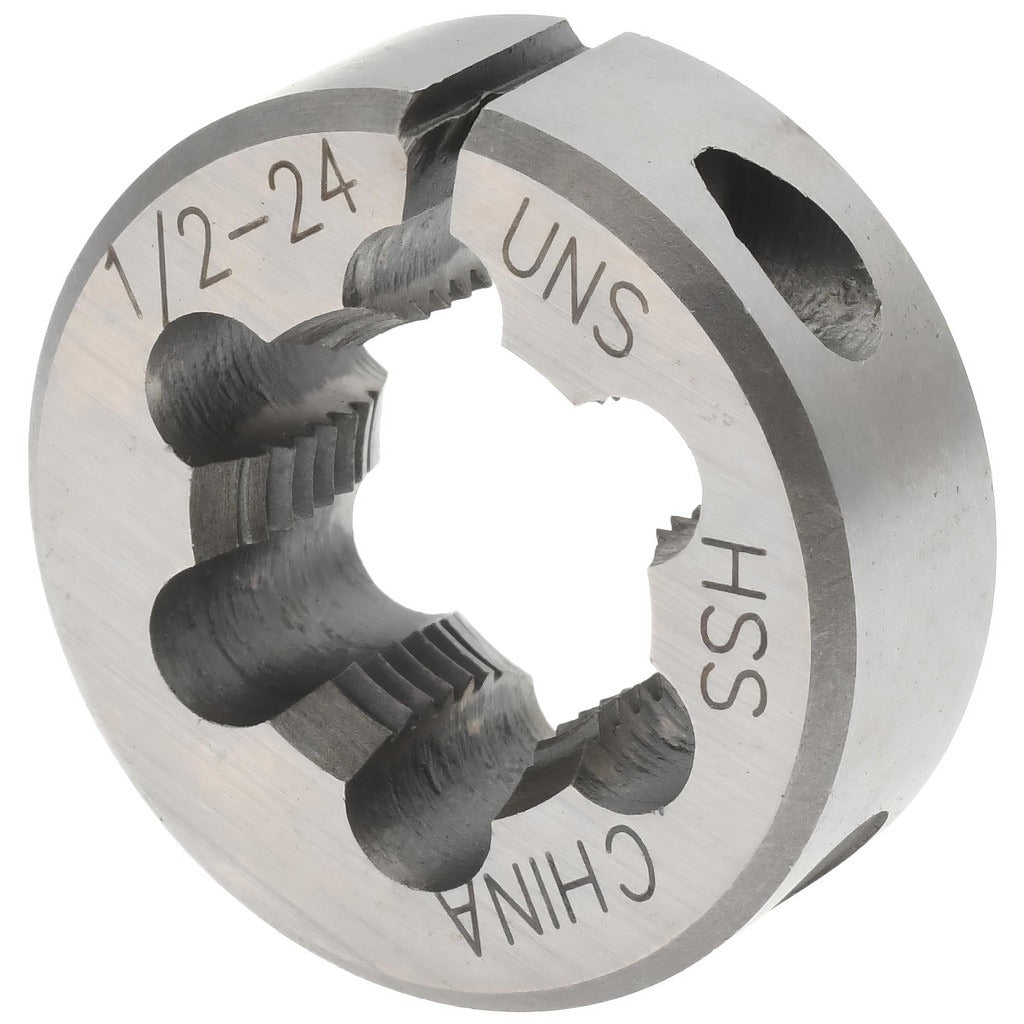

Value Collection 315-1164 Round Die 1/2-24 1 Inch Od Hss

Product Description

The VALUE COLLECTION 315-1164 is a round threading die designed to cut external threads on rod, bolt stock, and round bar stock. It cuts a 1/2-24 UNS right-hand thread profile and is manufactured from high-speed steel (HSS) for heat resistance and edge retention during threading operations. The die measures 1 inch in outside diameter, fitting standard 1-inch die stocks and holders. An adjustable design allows the operator to fine-tune thread fit by slightly opening or closing the die body with the set screw on the die stock. Machinists, tool and die workers, and maintenance technicians use this type of die for both new thread cutting and chasing damaged threads.

This die is suited for use in machine shops, maintenance facilities, and production environments where 1/2-24 UNS external threads are required. The 1/2-24 thread specification is a fine-pitch designation used in precision mechanical assemblies, firearms components, and specialty fastener applications. The right-hand thread direction is standard for most threading operations. The HSS construction handles both ferrous and non-ferrous materials at typical hand-threading and low-speed machine-threading feeds.

Key Features

• 1/2-24 UNS thread form for fine-pitch external threading
• 1 inch outside diameter fits standard round die stocks
• High-speed steel construction resists heat and wear during threading
• Adjustable body allows thread fit fine-tuning via die stock set screw
• Right-hand thread direction, the standard for most applications

Compatibility

Designed as a standard 1-inch OD round die for use in any die stock or holder accepting a 1-inch round die body.

Installation Notes

Secure the die firmly in a properly sized die stock before use. Ensure the workpiece is chamfered at the leading end to help the die start squarely. Apply appropriate cutting fluid to the workpiece and die during threading to reduce heat and improve thread quality. Inspect the die for wear or chipping before each use and replace if cutting edges are degraded.
