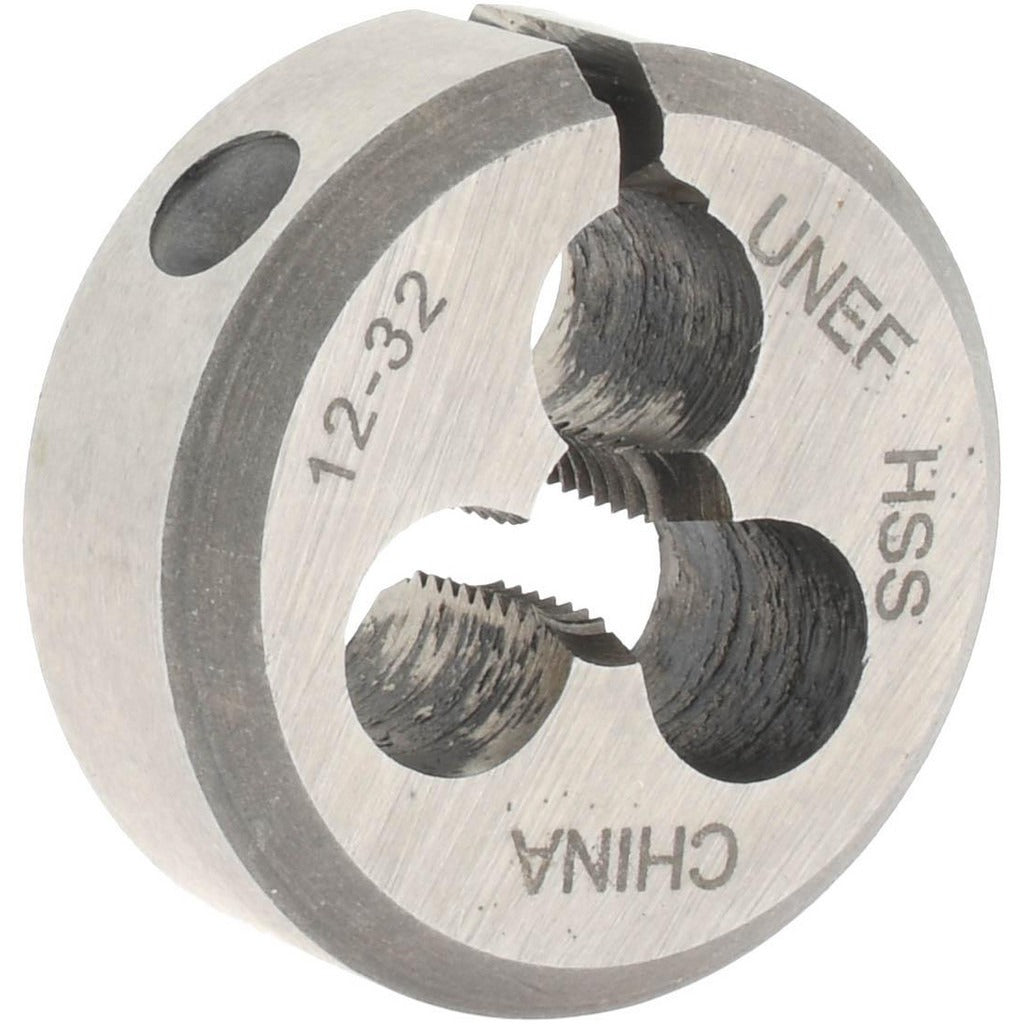

Value Collection 315-1096 Round Die 12-32 1in Od Hss

Product Description

The VALUE COLLECTION 315-1096 is a round threading die designed to cut external 12-32 threads in metal workpieces. Made from high-speed steel (HSS), it holds cutting edges at elevated temperatures, making it suitable for production threading in steel, aluminum, brass, and similar materials. The die measures 1 inch in outside diameter and follows the UNEF (Unified Extra Fine) thread standard with a right-hand thread direction. An adjustable design allows the operator to fine-tune thread fit and cutting depth. Machinists, tool and die makers, and maintenance technicians commonly use this type of die for threading fastener stock, rods, and repair work on damaged threads.

This die is appropriate for both shop production and field repair applications where a 12-32 UNEF right-hand external thread is required. It fits standard 1-inch OD die holders and die stocks, making it compatible with common hand and bench threading setups. Typical use cases include threading small-diameter rod stock, machine screws, and instrumentation hardware in light manufacturing, maintenance, and repair environments.

Key Features

• High-speed steel construction retains cutting performance under heat generated during threading
• Adjustable design allows fine-tuning of thread tolerance and fit
• Right-hand thread direction follows standard fastener convention
• UNEF thread standard for extra-fine pitch applications
• 1 inch outside diameter fits standard round die stocks and holders

Compatibility

Designed for use in standard 1-inch OD round die holders and die stocks; cuts 12-32 UNEF right-hand external threads on compatible rod stock and fasteners.

Installation Notes

This die is installed and operated by machinists or maintenance technicians using a standard die stock or die holder sized for 1-inch OD dies. Secure the die firmly in the holder using the set screws before starting a cut, and apply appropriate cutting fluid to extend die life and improve thread finish. Always deburr and chamfer the end of the workpiece before threading to reduce stress on the cutting edges. Inspect the die for wear or chipping before each use and replace if thread quality degrades.
