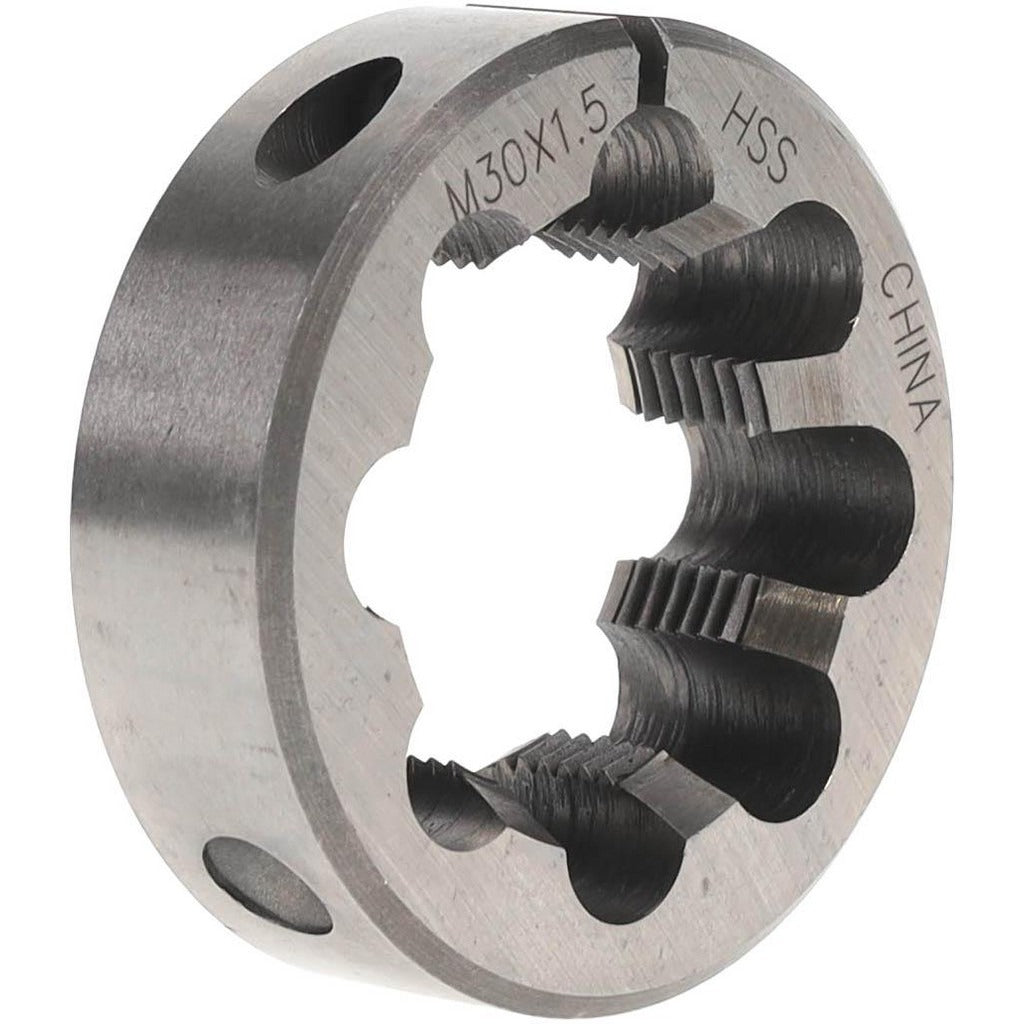

Value Collection 314-1852 Round Die M30x1.5 2 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1852 is a round threading die designed to cut external metric fine threads on cylindrical workpieces. It produces M30x1.5 threads with a right-hand thread direction and is manufactured from high-speed steel for durability under repeated use. The die measures 2 inches in outside diameter, fitting standard round die stocks of that size. The adjustable design allows the operator to fine-tune thread fit by slightly expanding or contracting the die cutting diameter. This tool is used by machinists, maintenance technicians, and trade professionals who need to cut or chase metric fine external threads in shop or field conditions.

This die is suited for applications requiring metric fine thread profiles, including hydraulic fittings, automotive components, and precision mechanical assemblies where a finer thread pitch than standard metric is specified. The M30x1.5 designation indicates a 30 mm nominal diameter with a 1.5 mm thread pitch, which is a common metric fine specification in industrial and automotive work. It is appropriate for use in both production and repair threading operations on ferrous and non-ferrous materials.

Key Features

• M30x1.5 metric fine thread profile for precision external threading
• 2 inch outside diameter fits standard round die stocks
• High-speed steel construction for extended tool life
• Adjustable die allows fine-tuning of thread fit and tolerance
• Right-hand thread direction for standard fastener applications
• Metric fine thread standard for automotive and hydraulic applications

Compatibility

Designed for use in standard 2 inch round die stocks. Cuts M30x1.5 metric fine external threads on workpieces within the appropriate diameter range.

Installation Notes

This die is installed and secured in a compatible 2 inch round die stock before use. Ensure the workpiece is properly chamfered at the lead end to allow the die to start cleanly and track straight. Apply cutting oil appropriate for the workpiece material to extend die life and improve thread quality. Inspect the die for wear or damage before each use and replace if cutting edges are chipped or the thread form is degraded.
