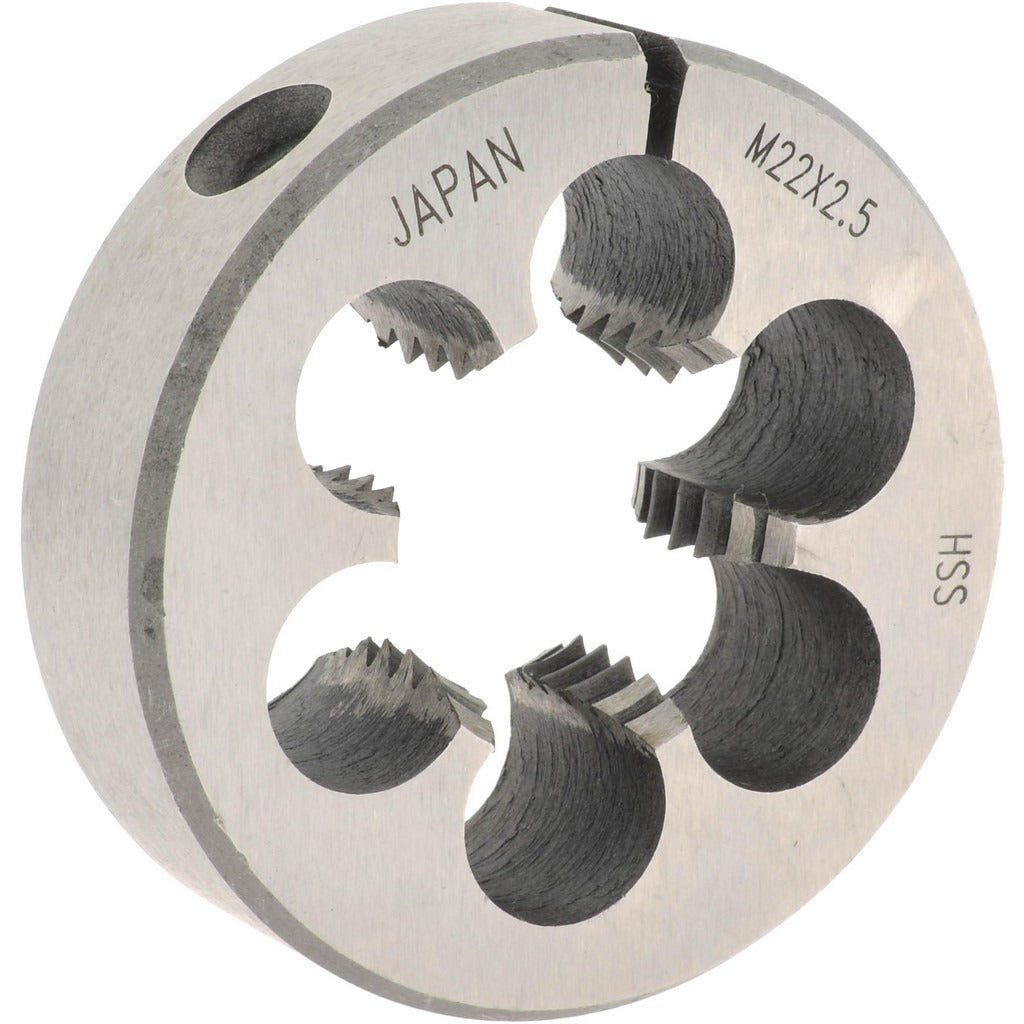

Value Collection 314-1836 Round Die M22x2.5 2 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1836 is a round threading die designed to cut external metric coarse threads sized M22x2.5. Made from high-speed steel (HSS), this die maintains cutting hardness under the heat and friction generated during threading operations. The 2-inch outside diameter fits standard round die stocks and holders designed for that size. It is adjustable, allowing the technician to fine-tune thread fit and compensate for tool wear. This die cuts right-hand threads, the standard direction for general fastener and mechanical assembly work. Machinists, maintenance technicians, and toolroom professionals use this die for threading rod, bolt stock, and shaft ends to M22x2.5 specifications.

This die is suited for threading mild steel, aluminum, brass, and similar machinable materials in shop, maintenance, or field repair applications. It is appropriate for both production use and one-off repair jobs where a damaged or new M22x2.5 thread is required on an external workpiece. The adjustable feature makes it practical for achieving a range of thread fits without requiring multiple dedicated dies. It is used by machinists, millwrights, pipefitters, and maintenance mechanics working on metric-fastened equipment and assemblies.

Key Features

• M22x2.5 metric coarse thread size for standard metric fastener applications
• High-speed steel construction for durability and heat resistance during cutting
• 2-inch outside diameter fits standard round die stocks designed for that size
• Adjustable design allows thread fit fine-tuning and compensation for wear
• Right-hand thread direction matches standard fastener orientation
• Single-piece packaging suitable for toolroom, maintenance, or field use

Compatibility

Designed for use in standard round die stocks and holders that accept a 2-inch outside diameter die. Suitable for cutting M22x2.5 metric coarse external threads on compatible workpiece materials.

Installation Notes

This die is installed and operated by machinists or maintenance technicians familiar with manual or machine threading procedures. Secure the die properly in a matching die stock before use, and apply an appropriate cutting fluid to the workpiece to extend die life and improve thread quality. Always start the die square to the workpiece to avoid cross-threading. Inspect the die for wear or damage before each use and replace if cutting edges are chipped or dull.
