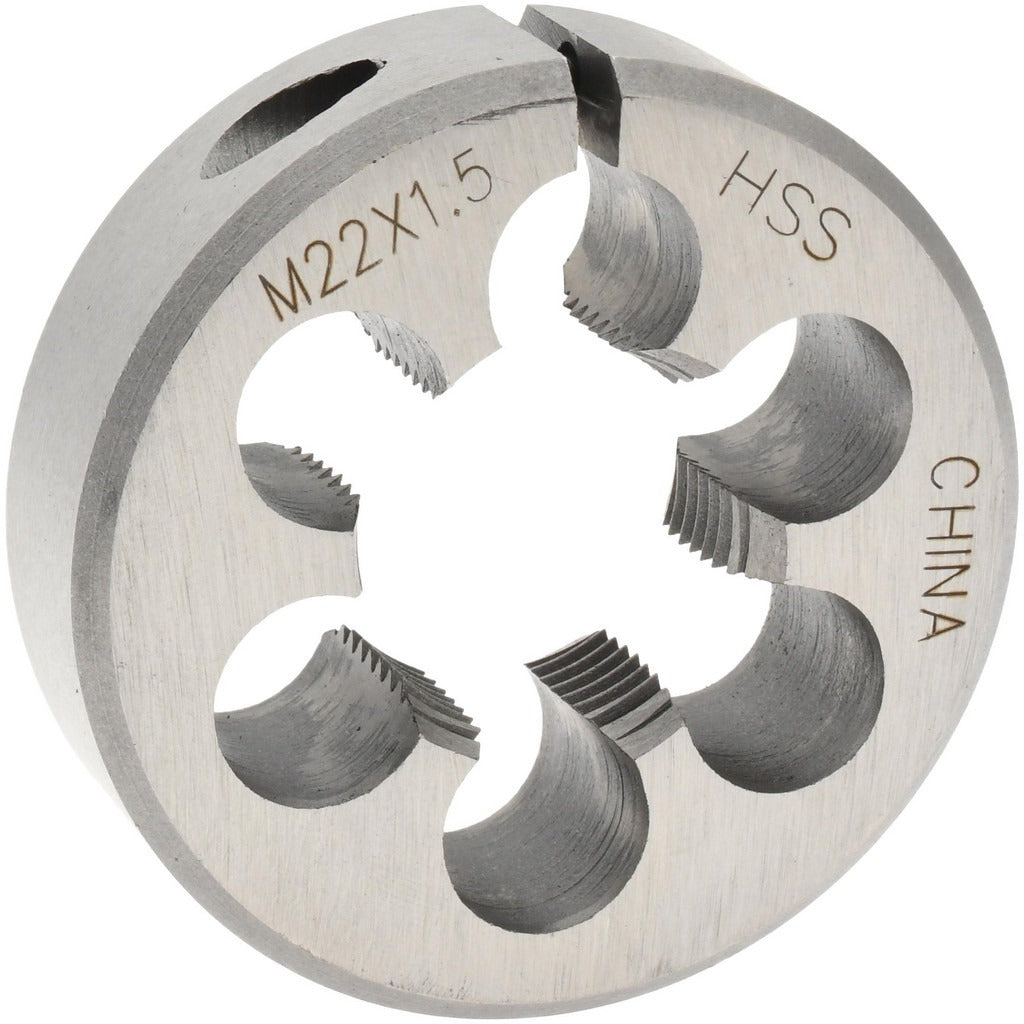

Value Collection 314-1832 Round Die M22x1.5 2 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1832 is a round threading die designed to cut external metric fine threads on bolts, studs, and round stock. Sized at M22x1.5 with a 2-inch outside diameter, this die is machined from high-speed steel (HSS) for durability under repeated use. The adjustable construction allows the operator to fine-tune thread fit and compensate for wear, making it suitable for both production and repair threading work. It is a right-hand die, cutting standard right-hand threads. Machinists, maintenance technicians, and tool-and-die tradespeople are the primary users of this type of tooling.

This die is applied wherever M22x1.5 metric fine external threads need to be cut or restored. Common scenarios include threading new fastener stock, repairing damaged threads on equipment studs, and fabricating custom threaded components. The 2-inch OD fits standard round die stocks and holders designed for that diameter. Metric fine thread applications are common in automotive, hydraulic, and precision mechanical assemblies where a finer thread pitch than standard metric is required for tighter clamping loads or vibration resistance.

Key Features

• M22x1.5 metric fine thread size for precision external threading
• 2-inch outside diameter fits standard round die stocks
• High-speed steel construction for extended tool life
• Adjustable design allows thread fit tuning and wear compensation
• Right-hand thread direction for standard fastener applications
• Metric fine thread standard suitable for automotive and hydraulic applications

Compatibility

Designed for use in standard 2-inch round die stocks and holders. Cuts M22x1.5 metric fine right-hand external threads on compatible round stock and fasteners.

Installation Notes

This die is installed and secured in a matching 2-inch round die stock before use. Secure the workpiece firmly before threading to prevent movement and ensure thread alignment. Apply appropriate cutting fluid to the workpiece and die during the threading operation to reduce heat and extend tool life. Inspect the die for wear or chipping before each use and adjust the set screw to achieve the desired thread fit.
