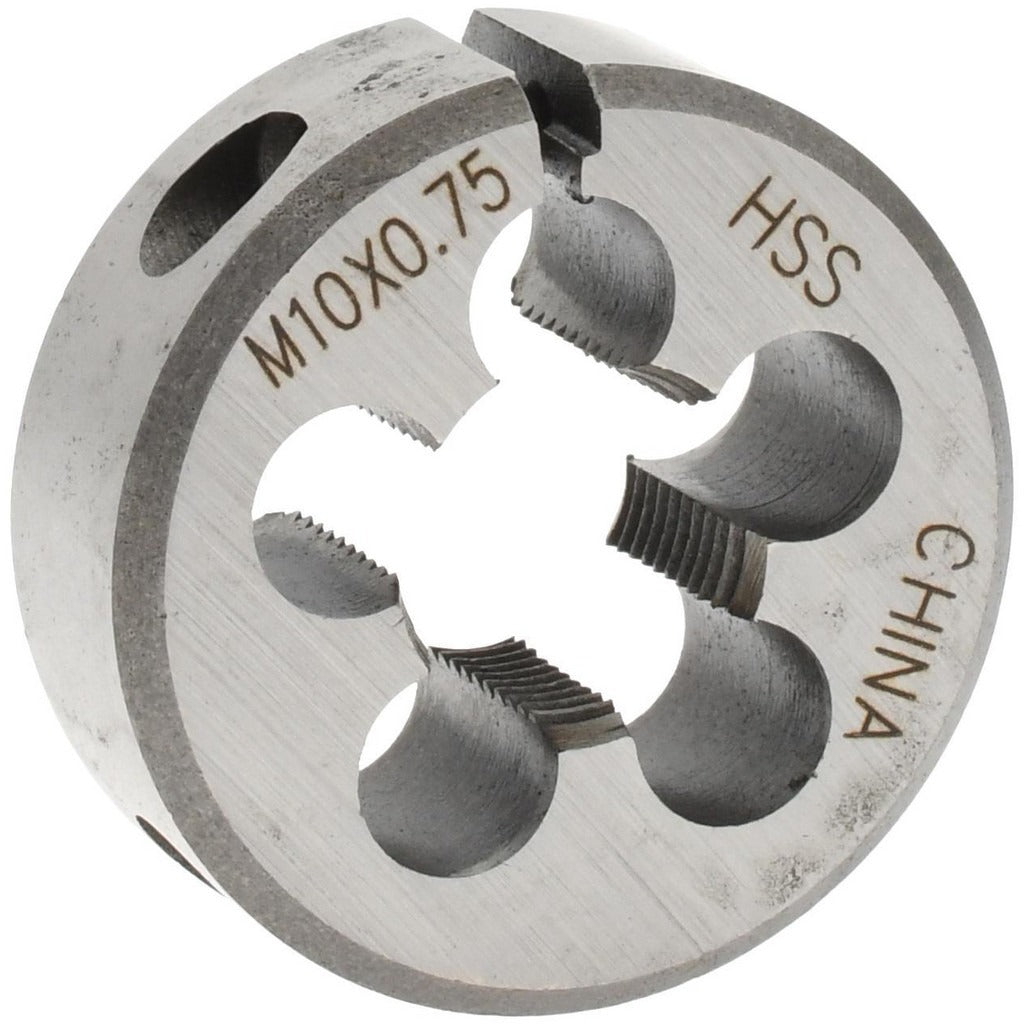

Value Collection 314-1650 Round Die M10x0.75 1 in Od Hss

Product Description

The VALUE COLLECTION 314-1650 is a round threading die designed to cut external metric fine threads on fasteners, fittings, and threaded rod. Manufactured from high-speed steel (HSS), it delivers the hardness and heat resistance required for repeated use in production or repair threading applications. The die cuts a right-hand M10x0.75 thread profile with a 1-inch outside diameter body that seats in standard 1-inch die stocks. The adjustable design allows the operator to fine-tune thread fit by opening or closing the die slightly for a tighter or looser thread tolerance.

This die is suited for machine shops, maintenance facilities, plumbing shops, and field service environments where metric fine threads must be cut or restored. The M10x0.75 pitch is commonly found on precision fasteners, hydraulic fittings, and instrumentation hardware. A licensed machinist, toolmaker, or experienced mechanic will typically install and operate this die. It is appropriate for both bench use in a die stock and compatible lathe or machine setups that accept 1-inch OD round dies.

Key Features

• M10x0.75 metric fine thread profile for precision fastener and fitting applications
• High-speed steel construction provides hardness and resistance to heat buildup during cutting
• 1-inch outside diameter fits standard 1-inch round die stocks
• Adjustable die body allows thread tolerance fine-tuning without additional tooling
• Right-hand thread direction for standard thread cutting orientation

Compatibility

Designed for use in standard 1-inch round die stocks. Fits bench-type and adjustable die holders accepting 1-inch OD round dies. No specific brand or model compatibility data was provided by the manufacturer for this part.

Installation Notes

Threading dies should be installed by a qualified machinist or experienced tradesperson familiar with hand threading or machine threading procedures. Secure the die firmly and evenly in the die stock before cutting to prevent misalignment. Apply appropriate cutting fluid to the workpiece before and during threading to reduce friction, extend die life, and improve thread quality. Inspect the die for wear or chipping before each use and replace if the cutting edges are damaged.
