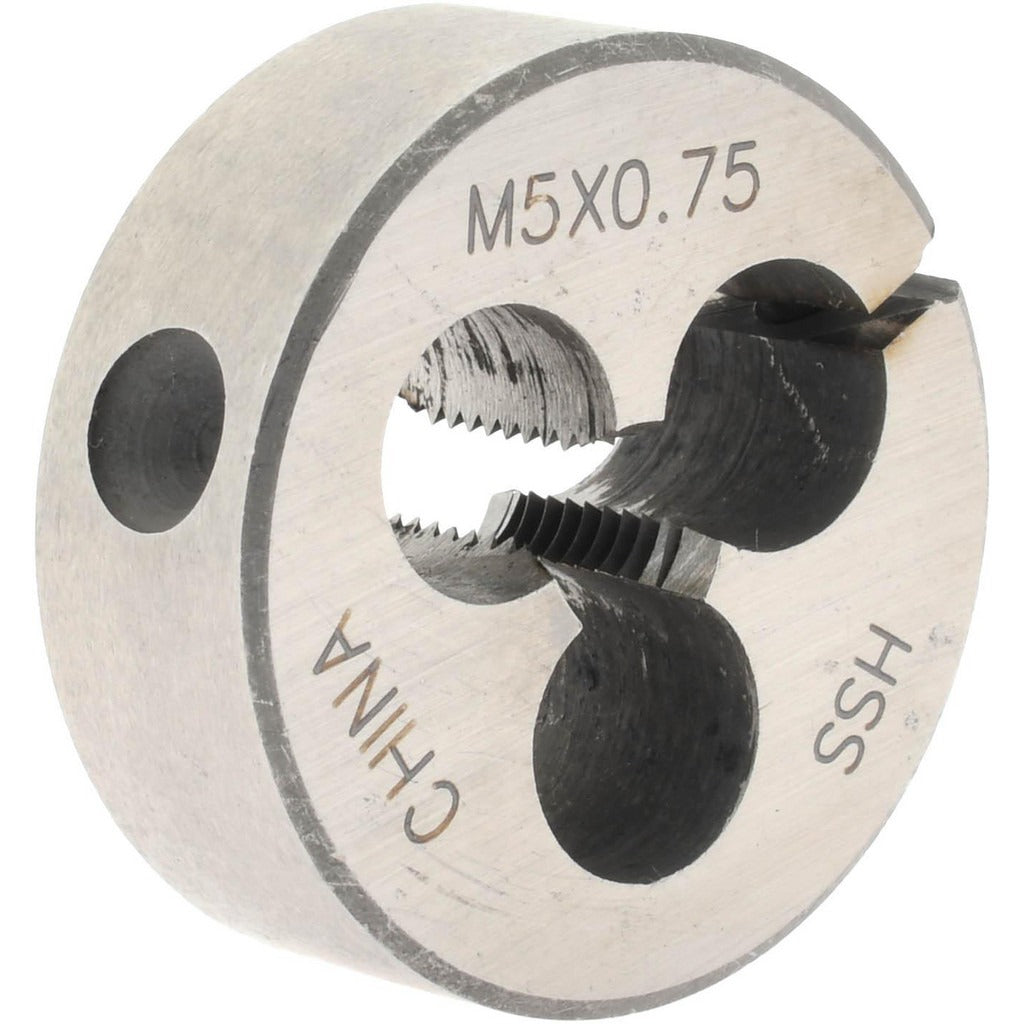

Value Collection 314-1633 Round Die M5x0.75 1 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1633 is a round threading die ground from high-speed steel for cutting external M5x0.75 metric fine threads. It features a 1-inch outside diameter and is adjustable for fine-tuning thread fit and managing cutting depth across multiple passes. The die cuts right-hand threads and is suited for use in a standard die stock or holder. Machinists, pipefitters, and maintenance technicians reach for this type of die when threading rod, bolt blanks, or shaft stock to metric fine specifications. High-speed steel construction provides the hardness and heat resistance needed for hand or machine threading operations in steel, stainless, brass, and similar materials.

This die is appropriate for threading operations in manufacturing, maintenance and repair, and fabrication environments where M5x0.75 metric fine external threads are required. The 1-inch OD is a common size that fits widely available round die stocks, making it a practical choice for bench work and field threading tasks. The adjustable design allows the operator to take a roughing pass followed by a finishing pass to achieve a cleaner, more accurate thread form. Typical users include machinists, tool and die workers, and industrial maintenance technicians.

Key Features

• M5x0.75 metric fine thread specification for precise external thread cutting
• 1-inch outside diameter fits standard round die stocks and holders
• High-speed steel construction resists heat buildup during threading operations
• Adjustable design allows roughing and finishing passes for accurate thread fit
• Right-hand thread direction — standard for the vast majority of fastener applications
• Weighs 0.5 pounds — compact and easy to handle at the bench or in the field

Compatibility

Designed as a standard 1-inch OD round die for use with compatible round die stocks sized to accept 1-inch dies. Cuts M5x0.75 metric fine external threads on rod, studs, or shaft stock of appropriate diameter.

Installation Notes

Round dies are installed and operated by licensed machinists and qualified maintenance technicians. Secure the die firmly in a properly sized die stock before use and apply a suitable cutting oil to the workpiece to reduce heat and improve thread finish. Always back off periodically during threading to break the chip and prevent galling. Inspect the workpiece diameter before threading to confirm it is within the correct tolerance range for the intended thread size.
