Value Collection 314-1264 Round Die 9/16-18 Unf Hss

Product Description

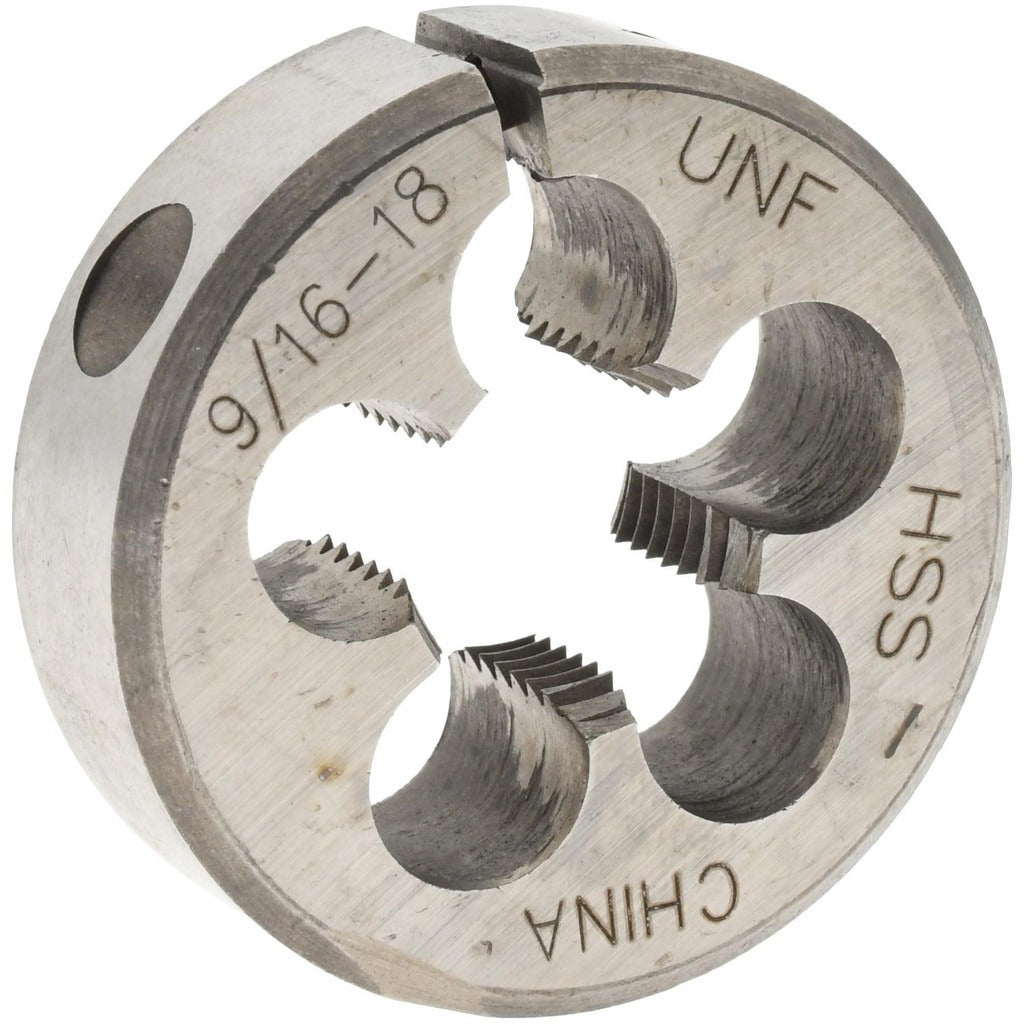

The VALUE COLLECTION 314-1264 is a round threading die designed to cut external threads on rod, bolt stock, and fastener blanks. It produces a 9/16-18 UNF right-hand thread profile and is manufactured from high-speed steel for extended tool life under repeated use. The adjustable design allows the operator to set cutting pressure and achieve a proper thread fit in a single setup. This die is suited for use in a standard round die stock holder and is typically installed by machinists, maintenance mechanics, and metalworking professionals working in fabrication or repair environments.

This die is commonly used in shop and field applications where 9/16-18 UNF external threads must be cut or restored on steel, aluminum, or similar machinable materials. The right-hand thread direction is the standard orientation for the vast majority of fastener applications. The adjustable feature is useful when threading softer materials or when a close-tolerance fit is required. It is appropriate for both production threading operations and one-off repair work.

Key Features

• 9/16-18 UNF thread specification for fine-pitch external threading
• High-speed steel construction for durability and resistance to wear
• Adjustable design allows control over thread fit and cutting pressure
• Right-hand thread direction matches standard fastener orientation
• Compatible with standard round die stock holders

Compatibility

Designed as an OEM-style replacement or standard round die for use with any die stock holder sized to accept a round threading die of corresponding diameter.

Installation Notes

This die is installed and secured in a round die stock holder using the set screws provided on the holder. Before threading, ensure the workpiece is properly chamfered at the end to guide the die onto the material cleanly. Apply cutting fluid appropriate for the workpiece material to reduce heat and extend die life. Adjust the die gap using the adjustment screw on the holder before taking a final finishing pass.
