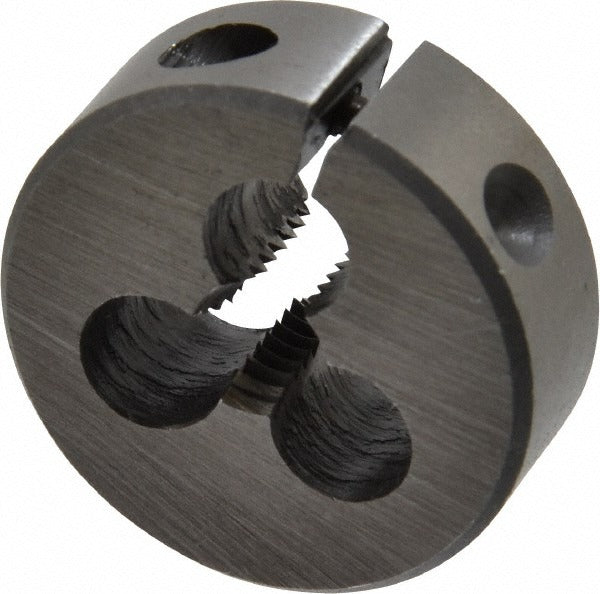

Value Collection 314-1138 Round Die 14-24 Uns 1 in Od Hss

Product Description

The VALUE COLLECTION 314-1138 is a round threading die designed to cut external 14-24 UNS right-hand threads. Manufactured from high-speed steel (HSS), this die maintains cutting edge hardness under the heat and friction generated during threading operations. The 1-inch outside diameter fits standard round die stocks and holders. An adjustable design allows the operator to fine-tune thread fit and compensate for wear, extending the useful service life of the die. This tool is used by machinists, maintenance technicians, and trade professionals who need to chase, restore, or cut new threads on fasteners, studs, and rod stock.

This die is suited for threading operations on small-diameter fasteners and hardware in the 14-24 UNS thread specification, which falls outside the standard Unified National Coarse and Fine series. Typical applications include repair work on specialty fasteners, instrument hardware, and light mechanical assemblies. The right-hand thread direction is standard for the vast majority of threading tasks. The 1-inch OD form factor is widely used in manual die stocks found in maintenance and machine shops.

Key Features

• 14-24 UNS thread size for specialty fastener threading and repair
• High-speed steel construction resists heat and maintains cutting hardness
• Adjustable design allows thread fit fine-tuning and extends die life
• Right-hand thread direction suits standard threading applications
• 1-inch outside diameter fits common round die stocks and holders

Compatibility

Designed for use in standard 1-inch round die stocks and holders compatible with 1-inch OD round dies. Cuts 14-24 UNS external right-hand threads on appropriate stock material.

Installation Notes

This die is installed and operated by machinists or maintenance technicians using a compatible round die stock. Secure the die firmly in the die stock before beginning any threading operation. Apply appropriate cutting fluid to the workpiece to reduce heat buildup and improve thread finish. Inspect the die for wear or damage before each use and adjust the set screw to achieve the desired thread tolerance.
