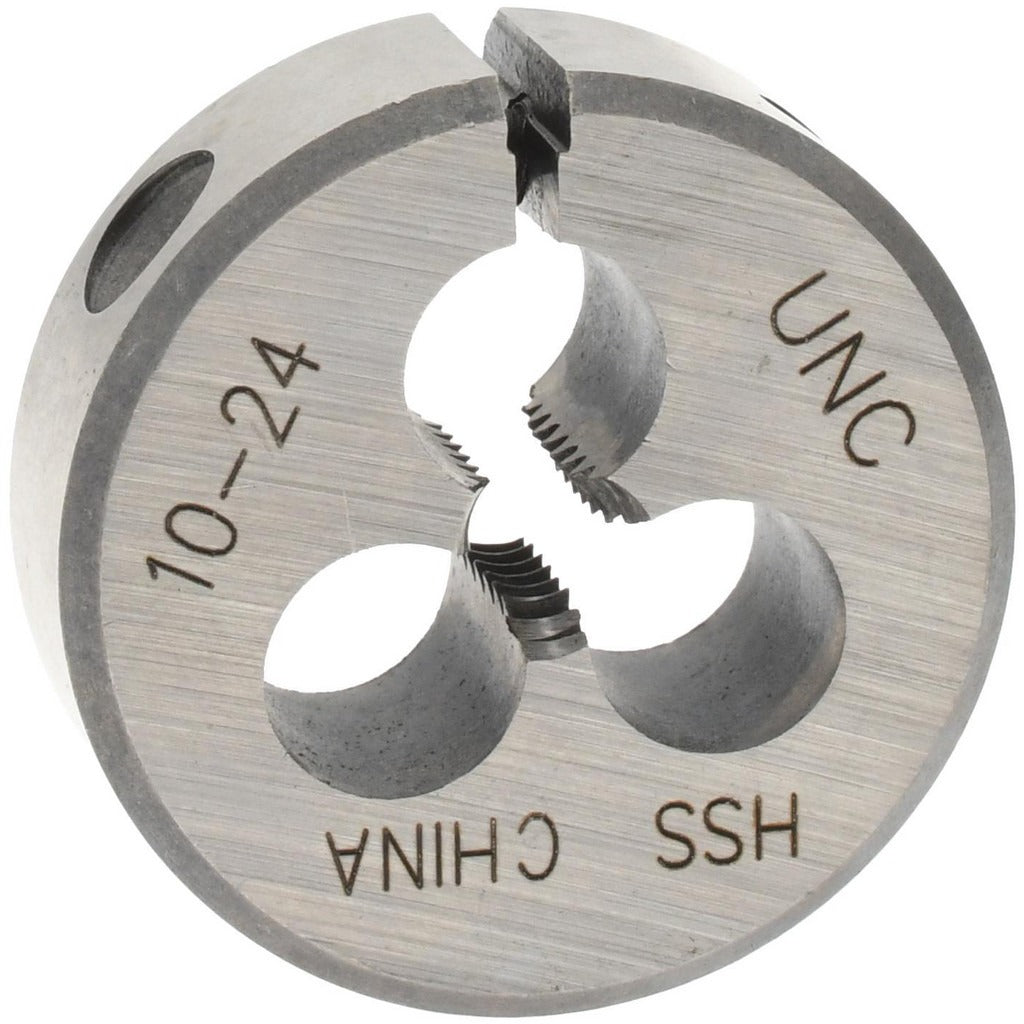

Value Collection 314-1130 Round Die 10-24 1 Inch Od Hss Unc

Product Description

The VALUE COLLECTION 314-1130 is a round threading die designed to cut external threads on fasteners, rods, and fittings in the 10-24 UNC thread form. Manufactured from high-speed steel (HSS), the die holds cutting edge hardness under the heat generated during threading operations. The 1-inch outside diameter fits standard round die stocks commonly found in plumbing and mechanical shops. The adjustable design allows minor pitch-diameter tuning for fit tolerance. This die cuts a right-hand thread and is suited for use by plumbers, HVAC techs, electricians, and maintenance mechanics who need to chase or cut 10-24 fastener threads in the field or shop.

This die is appropriate for cutting or restoring 10-24 UNC external threads on machine screws, threaded rod, studs, and similar hardware. Typical applications include fabricating mounting hardware, chasing damaged threads on HVAC equipment mounting bolts, and cutting threads on electrical panel fasteners. It is suited for both shop bench work and light field use wherever a round die stock is available. The 0.06-pound weight keeps the tool easy to handle in confined workspaces.

Key Features

• High-speed steel construction retains hardness during high-friction threading cuts
• Adjustable die allows pitch-diameter fine-tuning for thread fit tolerance
• 1-inch OD fits standard round die stocks
• Right-hand thread direction for standard UNC fastener applications
• 10-24 UNC thread form covers common machine screw and equipment fastener sizes
• Lightweight at 0.06 pounds for easy single-hand positioning

Compatibility

Designed for use in any standard 1-inch round die stock holder. Cuts 10-24 UNC right-hand external threads on steel, aluminum, brass, and similar machinable materials.

Installation Notes

Secure the workpiece firmly in a vise before threading to prevent movement and ensure thread alignment. Apply a cutting fluid appropriate for the workpiece material to extend die life and improve thread finish. Back off the die periodically during cutting to clear chips and reduce heat buildup. Follow applicable shop safety practices and wear eye protection when operating hand threading tools.
