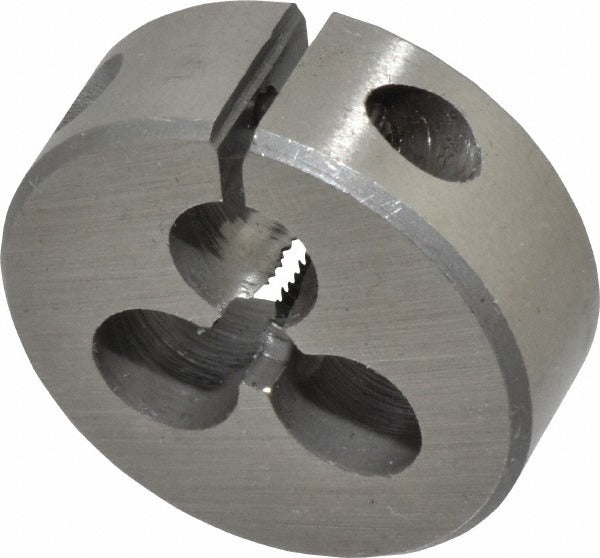

Value Collection 314-1124 Round Die 6-40 Unf 1 in Od Hss

Product Description

The VALUE COLLECTION 314-1124 is a round threading die designed to cut external threads on rod, bolt stock, and fasteners. It produces a 6-40 UNF (Unified National Fine) thread profile with a right-hand thread direction. The die measures 1 inch in outside diameter and is machined from high-speed steel (HSS), which provides the hardness and heat resistance needed to maintain a clean cutting edge through repeated use. An adjustable design allows the operator to fine-tune thread depth and fit. This die is used by machinists, toolmakers, and maintenance professionals in both shop and field applications.

This die is suited for threading small-diameter fasteners, screws, and precision components in light manufacturing, instrument assembly, and general machining environments. The 6-40 UNF thread size is a fine-pitch designation common in precision mechanical assemblies where vibration resistance and close thread engagement are required. The 1-inch OD fits standard 1-inch round die stocks and holders, making it straightforward to integrate into existing tooling setups.

Key Features

• 6-40 UNF thread size for fine-pitch external threading applications
• 1-inch outside diameter fits standard round die stocks
• High-speed steel construction for durability and cutting edge retention
• Adjustable design allows thread depth and fit tuning
• Right-hand thread direction, the standard for most fastener applications

Compatibility

Designed to fit standard 1-inch round die stocks and die holders used in general machining and threading applications.

Installation Notes

This die is installed and operated by machinists or trained maintenance technicians. Secure the die firmly in a properly sized 1-inch die stock before use. Apply an appropriate cutting fluid to the workpiece to reduce heat buildup and extend die life. Inspect the die for wear or chipping before each use, and do not force the die if resistance increases unexpectedly, as this may indicate misalignment or an undersized blank.
