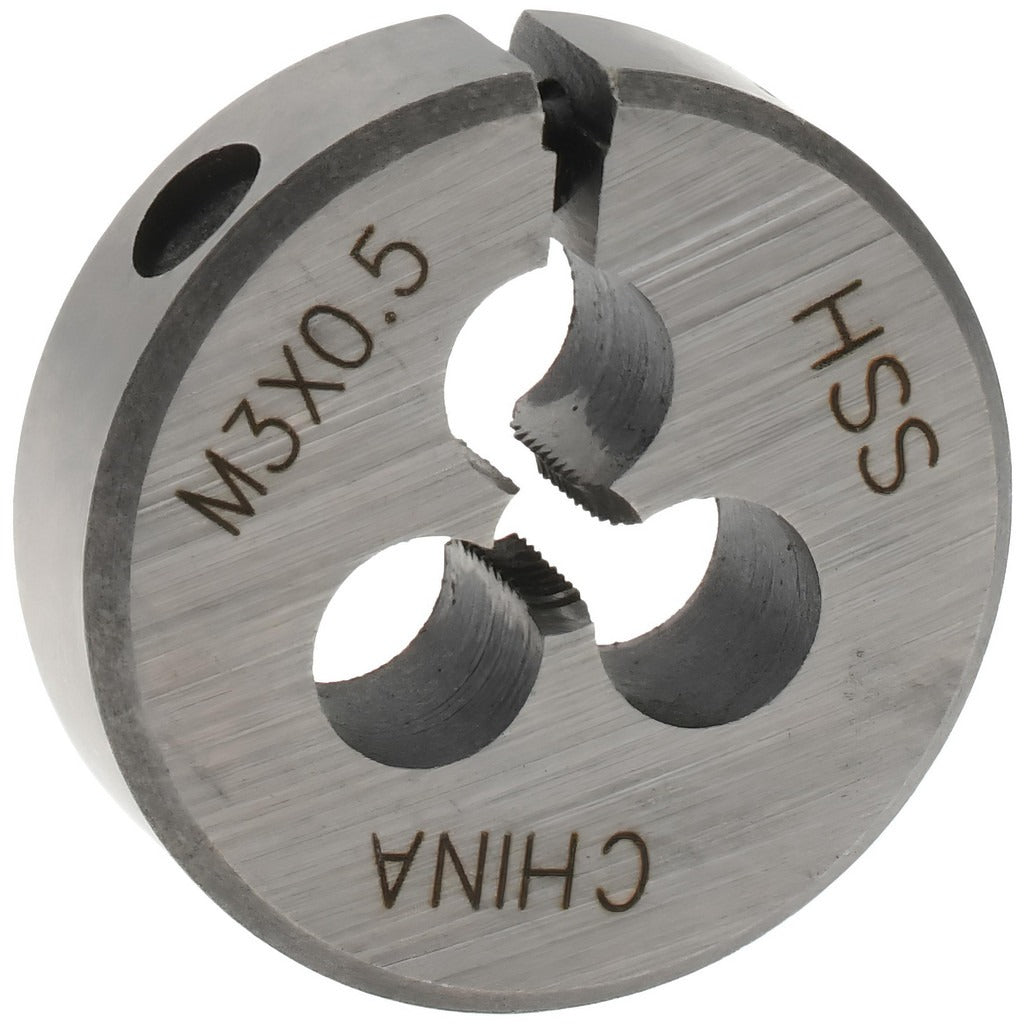

Value Collection 314-1063 Round Die M3x0.5 Hss Adjustable

Product Description

The VALUE COLLECTION 314-1063 is a round threading die designed to cut external metric threads on bolts, screws, and round stock. Ground from high-speed steel (HSS), it holds a sharp cutting edge through repeated use on steel, aluminum, and similar materials. The die is adjustable, allowing the operator to fine-tune thread fit and take multiple passes for cleaner thread cutting or to compensate for tool wear. It cuts M3x0.5 metric coarse right-hand threads and is suited for bench work, production threading, and field repair tasks performed by machinists, mechanics, and maintenance technicians.

This die is used wherever M3x0.5 metric coarse external threads need to be cut or chased. Common applications include fabricating fasteners from rod stock, cleaning damaged threads on machine screws, and production work requiring precise metric thread profiles. The M3 thread size is widely used in small-scale mechanical assemblies, electronics enclosures, and instrumentation hardware. The right-hand thread direction matches the standard fastener convention for these applications.

Key Features

• M3x0.5 metric coarse thread profile for compatibility with standard M3 fasteners
• High-speed steel construction for durability and edge retention across multiple uses
• Adjustable design allows fine-tuning of thread fit and multi-pass cutting
• Right-hand thread direction matches standard fastener convention
• Round die form fits standard round die stocks and holders

Compatibility

Designed as an OEM-style replacement or standard tooling addition for use in round die stocks sized to accept dies of this form factor, suitable for cutting M3x0.5 metric coarse external threads.

Installation Notes

This die is installed and used by machinists, maintenance technicians, and mechanics. Secure the die firmly in a properly sized round die stock before use, and apply cutting oil to the workpiece to improve thread quality and extend tool life. Start the die square to the workpiece to avoid cross-threading. Inspect threads after cutting and use a thread gauge to verify fit before assembly.
