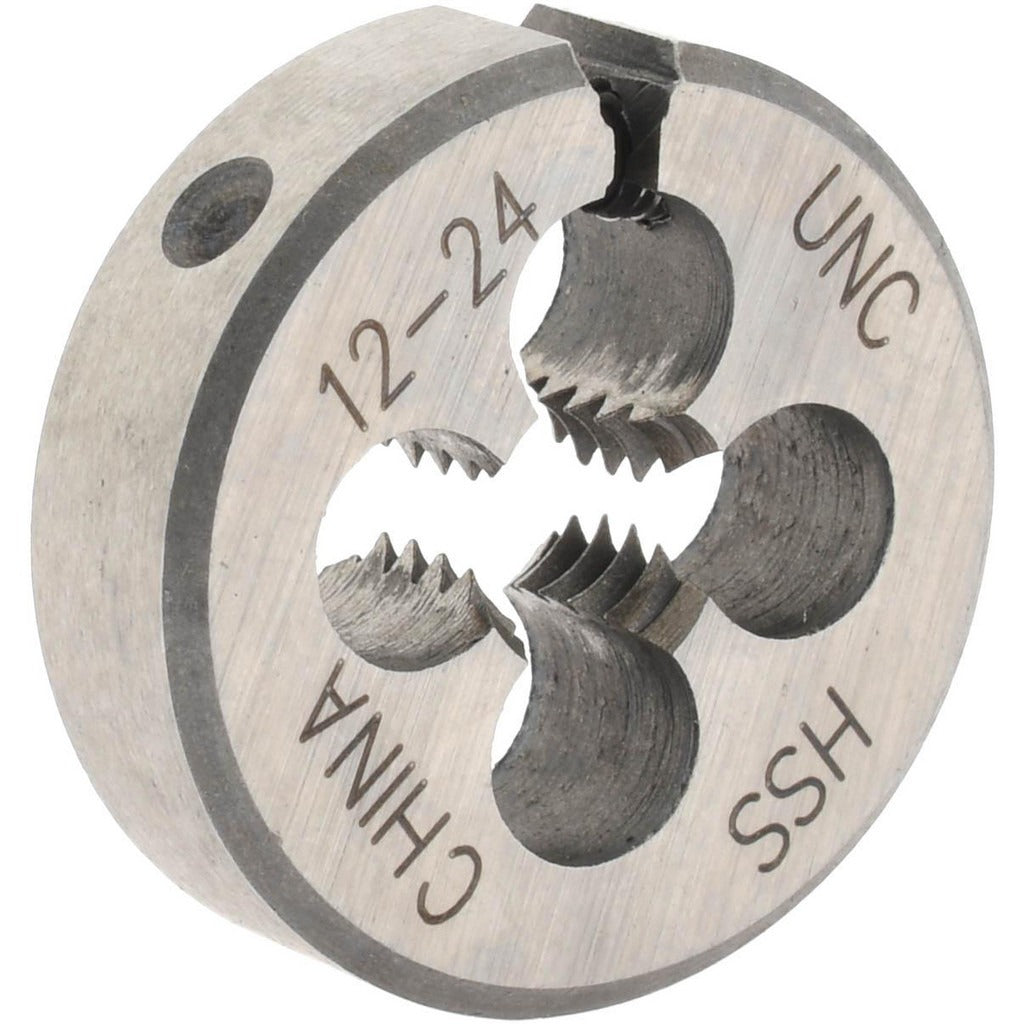

Value Collection 314-1034 Round Die 12-24 Unc Hss

Product Description

The VALUE COLLECTION 314-1034 is a round threading die designed to cut external 12-24 UNC right-hand threads on fasteners, bolts, rods, and studs. Manufactured from high-speed steel (HSS), this die maintains cutting edge hardness under the heat generated during threading operations, making it suitable for production and repair work in metal fabrication, maintenance, and machine shop environments. The adjustable design allows the operator to fine-tune the thread fit by slightly expanding or compressing the die body before or during the cut, extending tool life and improving thread quality on a variety of mild steel, aluminum, and similar workpiece materials.

This die is used wherever a 12-24 UNC external thread needs to be cut or chased. Typical applications include threading machine screws, bolts, and repair studs in light manufacturing, equipment maintenance, and general metalworking. The 12-24 thread size is common in small machine assemblies, instrument panels, and electrical enclosures. Machinists, maintenance technicians, and tool-and-die workers are the primary users. The die seats in a standard round die stock holder sized for this die's outer diameter.

Key Features

• High-speed steel construction retains hardness and cutting edge integrity at elevated threading temperatures
• Adjustable die body allows thread fit tuning without replacing the tool
• Right-hand thread cutting matches the standard fastener thread direction for 12-24 UNC
• UNC thread standard ensures compatibility with standard inch-series nuts and tapped holes
• Single-piece round die format fits conventional round die stock handles

Compatibility

Designed for use with standard round die stock holders sized to accept this die. Cuts 12-24 UNC external right-hand threads on workpieces of compatible diameter and material.

Installation Notes

Round dies are installed and driven by a matching round die stock handle — verify the handle's die capacity matches the outer diameter of this die before use. Secure the die in the stock with the set screws snug before threading. Apply appropriate cutting fluid to the workpiece to reduce heat and improve thread finish. Adjust the die's expansion screws incrementally when fine-tuning thread fit; avoid over-compressing the die body, which can cause cracking.
