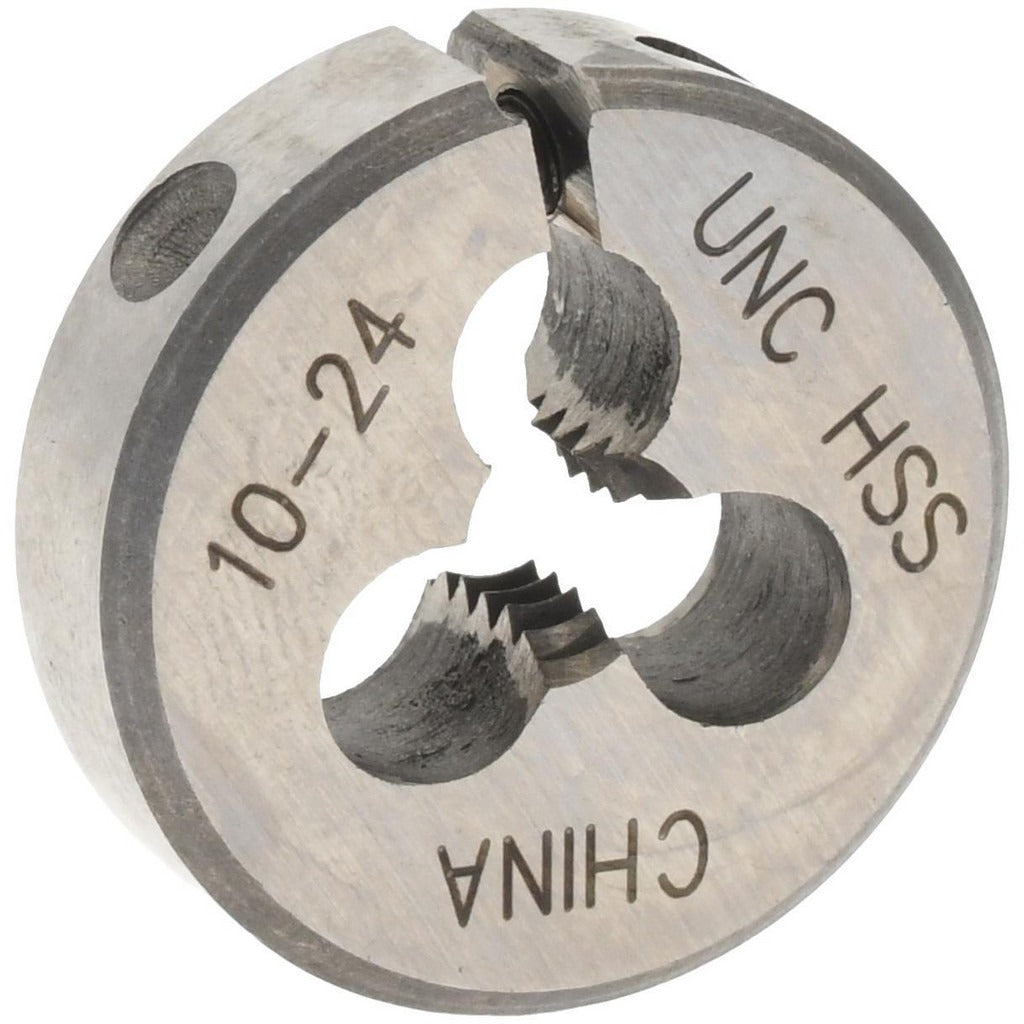

Value Collection 314-1030 Round Die 10-24 Unc High Speed Steel

Product Description

The VALUE COLLECTION 314-1030 is a round threading die designed to cut external threads on bolts, studs, and round stock. It cuts a 10-24 UNC thread profile in a right-hand direction and is manufactured from high-speed steel for durability across a range of ferrous and non-ferrous materials. The adjustable design allows the operator to fine-tune thread fit by opening or closing the die slightly using a set screw, making it suitable for both cutting new threads and chasing worn or damaged ones. This die is a standard shop tool used by machinists, maintenance technicians, pipefitters, and general trade professionals who perform threading operations by hand or with a die stock holder.

This die is appropriate for threading fastener-diameter stock in general industrial, maintenance, and repair applications. The 10-24 UNC designation indicates a nominal diameter of approximately 0.19 inches with 24 threads per inch, a coarse-thread standard widely used in machine screws, panel fasteners, and light structural assemblies. It is suited for use in metal fabrication shops, field maintenance, and any environment where creating or restoring standard machine screw threads is required.

Key Features

• 10-24 UNC thread form for cutting standard coarse machine screw threads
• High-speed steel construction provides heat resistance and extended cutting life
• Adjustable die allows fine-tuning of thread tolerance and fit
• Right-hand thread direction compatible with standard fastener applications
• Compact round die form fits standard die stock holders

Compatibility

Designed as an OEM-style replacement or standard shop die for use with any die stock holder or rethreading set that accepts a round die sized for 10-24 UNC threading applications.

Installation Notes

Threading dies are used by machinists and maintenance trades using a die stock holder sized to match the die's outer diameter. Secure the workpiece firmly before beginning thread cutting, and apply cutting fluid to reduce friction and extend die life. Adjust the die set screw incrementally to achieve proper thread fit before cutting a full-length thread. Always wear appropriate eye protection when performing threading operations.
