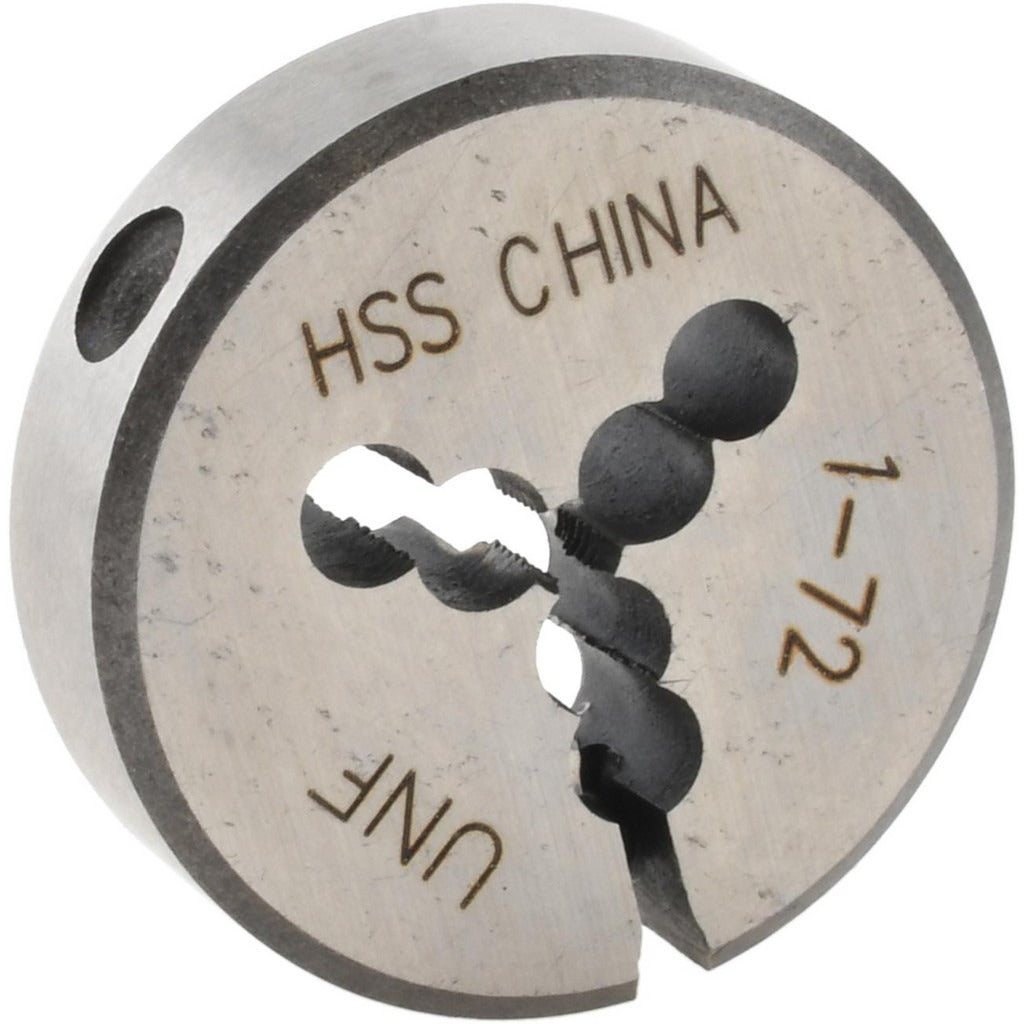

Value Collection 314-1004 Round Die 1-72 Unf Hss

Product Description

The VALUE COLLECTION 314-1004 is a round threading die used to cut external threads on bolts, screws, and rod stock. Sized for the 1-72 thread form, it conforms to the Unified National Fine (UNF) standard and is manufactured from high-speed steel (HSS) for durability under repeated use. The adjustable design allows the cutting diameter to be fine-tuned for fit and thread quality. This die is a standard toolroom and field-service item used by machinists, maintenance technicians, and trade professionals who fabricate or restore threaded fasteners in small-diameter applications.

This die is suited for 1-72 UNF threading operations on ferrous and non-ferrous materials where a fine-pitch, right-hand thread is required. Typical applications include instrument fasteners, small electrical hardware, and precision mechanical assemblies where the 1-72 thread size is specified. The round die form is compatible with standard die stocks and holders that accept the corresponding die outside diameter.

Key Features

• 1-72 UNF thread size for fine-pitch, small-diameter threading work
• High-speed steel construction for extended cutting life and heat resistance
• Adjustable design allows minor diameter adjustment for thread fit
• Right-hand thread direction matches the most common fastener orientation
• Round die form fits standard die stock holders

Compatibility

Designed for use with standard round die stocks and holders sized to accept this die outside diameter. Intended for cutting 1-72 UNF right-hand external threads.

Installation Notes

This die is installed by a machinist or qualified technician into a compatible die stock before use. Secure the die in the stock using the set screws before applying cutting pressure. Use appropriate cutting fluid for the workpiece material to extend die life and improve thread quality. Inspect the die for chipping or wear before each use.
