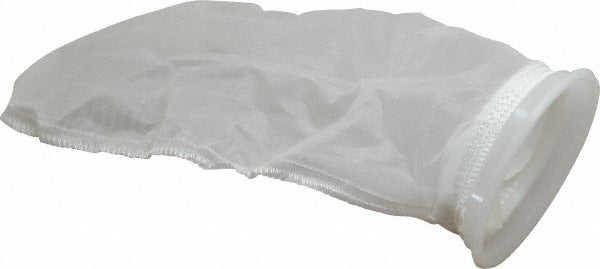

Value Collection 310-008-112 Liquid Bag Filter 250 Micron

Product Description

The VALUE COLLECTION 310-008-112 is a Size 4 liquid bag filter rated at 250 microns, designed to remove particulate from liquid process streams in industrial and commercial filtration systems. Constructed from mesh polyester, the bag measures 4 inches in diameter and 14 inches in length, providing 1.3 square feet of filtration area. With a maximum flow rate of 50 GPM and a maximum working temperature of 300 degrees F, this filter suits a wide range of liquid handling applications. It is installed by maintenance technicians, process engineers, and industrial plumbers working on coolant, water treatment, chemical, and general fluid process lines.

This bag filter is suited for use in standard Size 4 bag filter housings found in light industrial, commercial water treatment, and process fluid applications. The 250-micron rating targets coarse particulate removal upstream of finer filtration stages or process equipment. The mesh polyester construction offers compatibility with many common process liquids and moderate-temperature environments up to 300 degrees F. This filter is sold individually and is a direct drop-in for any Size 4 compatible bag filter housing.

Key Features

• 250-micron filtration rating for coarse particulate removal from liquid streams
• Size 4 bag format — 4 inches in diameter and 14 inches in length
• Maximum flow rate of 50 GPM for high-volume liquid process applications
• Mesh polyester construction rated to 300 degrees F maximum working temperature
• 1.3 square feet of effective filtration area for extended service intervals
• Lightweight at 0.15 pounds for easy handling and changeout

Compatibility

Designed as a replacement or maintenance filter for standard Size 4 bag filter housings used in industrial and commercial liquid filtration systems.

Installation Notes

Liquid bag filters are serviced by industrial maintenance technicians and commercial plumbers. Always depressurize and isolate the filter housing before opening and replacing the bag. Verify that the housing inlet and outlet valves are fully closed and residual pressure is relieved before removing the spent filter bag. Dispose of collected particulate in accordance with applicable local regulations for the process fluid type being filtered.
