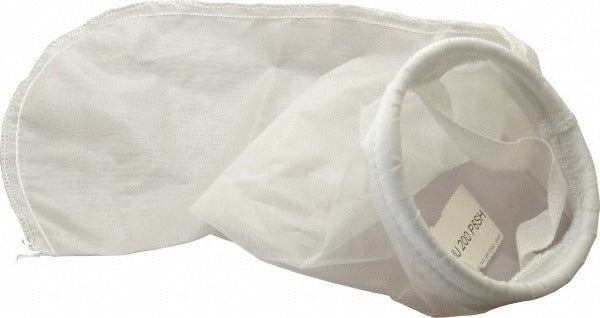

Value Collection 310-008-107 Liquid Bag Filter 200 Micron

Product Description

The VALUE COLLECTION 310-008-107 is a Size 8 liquid bag filter rated at 200 microns, designed to remove particulate from liquid process streams in industrial and commercial filtration systems. Built from mesh polyester, this filter handles flow rates up to 75 GPM and withstands operating temperatures up to 300 degrees F. Measuring 5.5 inches in diameter and 20 inches in length, it provides 2 square feet of filtration area. Plumbers, pipefitters, and industrial maintenance technicians install this filter in bag filter housings to protect downstream equipment from suspended solids.

This bag filter is suited for liquid filtration applications including process water, coolants, chemical solutions, and light slurries in residential, commercial, and light industrial settings. The 200-micron rating targets coarse-to-medium particulate, making it appropriate for pre-filtration stages or applications where fine polishing is not required. Its mesh polyester construction resists many common process fluids and supports repeated use in compatible housing systems.

Key Features

• 200-micron mesh polyester construction for coarse-to-medium particulate removal
• Size 8 bag format fits standard Size 8 liquid bag filter housings
• Maximum flow rate of 75 GPM supports moderate to high-throughput systems
• Rated up to 300 degrees F for elevated-temperature process applications
• 2 square feet of filtration area for extended service intervals
• Lightweight at 0.2 pounds for easy handling and changeout

Compatibility

Designed as a direct-fit replacement for standard Size 8 liquid bag filter housings accepting a 5.5-inch diameter by 20-inch length bag configuration.

Installation Notes

Installation should be performed by a qualified pipefitter or maintenance technician familiar with liquid filtration systems. Depressurize and isolate the filter housing before removing or installing the bag to prevent fluid discharge. Confirm the housing inlet and outlet valves are fully closed and residual pressure is relieved prior to service. Follow applicable facility safety procedures and local codes when working with pressurized fluid systems.
