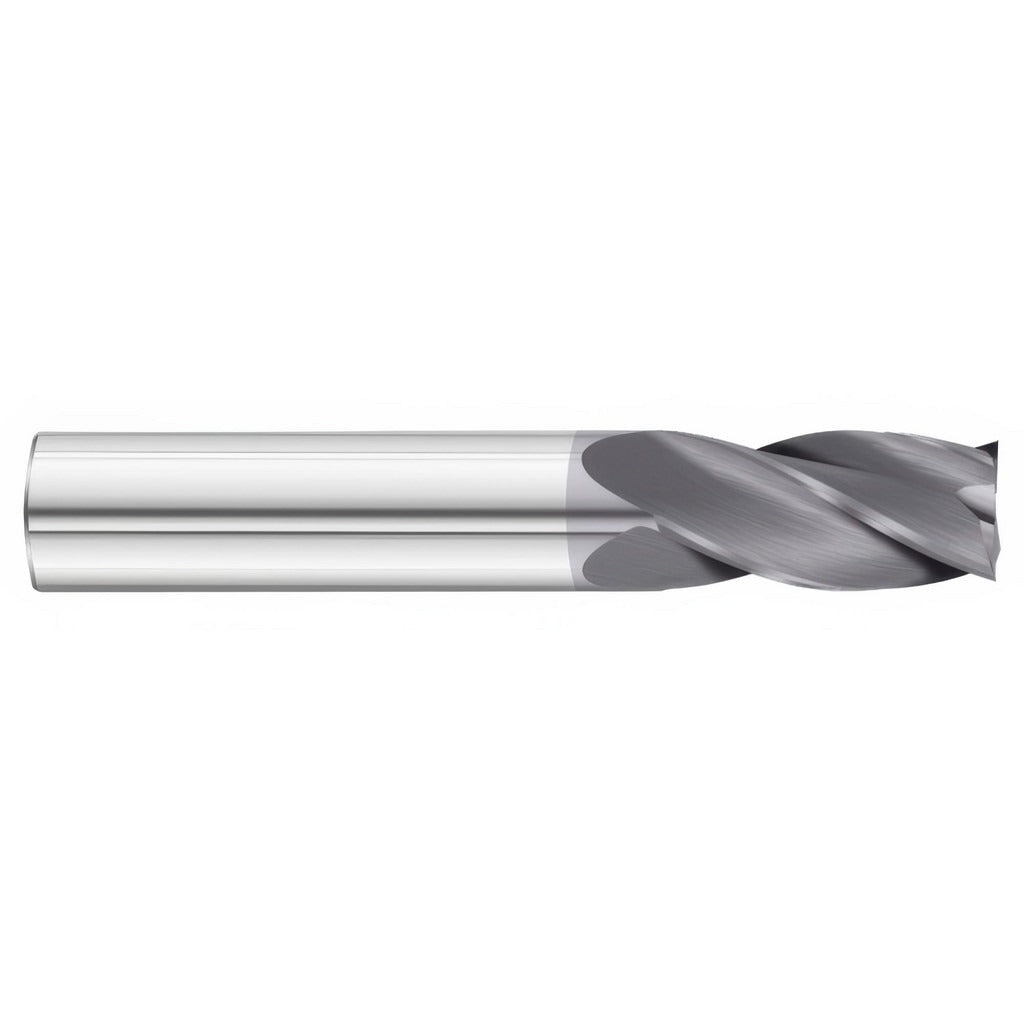

Value Collection 30613 Square End Mill 5/32 in 4 Flute

Product Description

The VALUE COLLECTION 30613 is a solid carbide square end mill designed for precision milling in metal and composite materials. Built to Series 3200 specifications, it features a 5/32 inch (0.1563 inch) mill diameter, a 9/16 inch length of cut, and a 3/16 inch straight shank. The four spiral flutes are ground from micrograin carbide stock and coated with TiAlN for heat resistance during high-speed cutting. With a 30-degree helix angle and centercutting capability, this end mill handles both plunge and peripheral cuts. It is a single-end tool with right-hand cut and right-hand flute orientation. Machinists and tool-and-die professionals working with CNC mills and manual knee mills are the primary users.

This end mill suits finishing and semi-finishing operations in steel, stainless, cast iron, and non-ferrous alloys where a small-diameter tool is required. The 2 inch overall length fits standard collet chucks and end mill holders without extended reach. The TiAlN coating supports dry cutting and elevated spindle speeds, making it practical for production runs where coolant-through is not available. No coolant-through passages are present in this design. It is a regular-length tool appropriate for general-purpose slotting, profiling, and pocketing in close-tolerance work.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• TiAlN coating supports high-speed dry or minimal-coolant cutting
• 4 spiral flutes with 30-degree helix angle for smooth chip evacuation
• Centercutting geometry allows direct plunge entry
• Right-hand cut and right-hand flute — standard CNC orientation
• Straight shank fits standard collet and end mill holder tooling

Compatibility

Designed as an OEM-style replacement or standard tooling selection for CNC machining centers and manual mills accepting a 3/16 inch straight shank end mill holder or collet.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked before inserting or removing the tool from the collet or end mill holder. Verify collet size matches the 3/16 inch shank diameter and that runout is within tolerance before beginning a cut. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
