Value Collection 302052 Hex Nut 3/8-16 Grade 2 Steel

Product Description

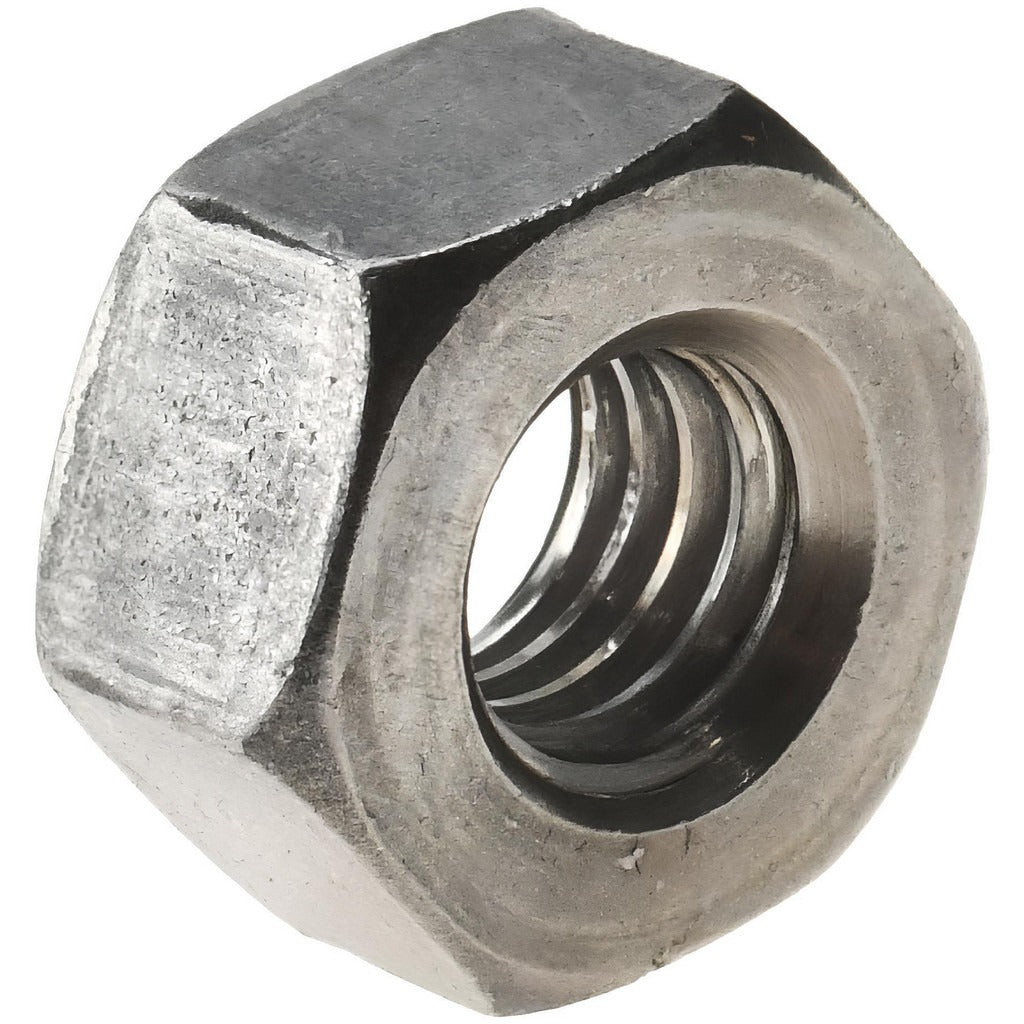

The VALUE COLLECTION 302052 is a 3/8-16 UNC hex nut manufactured from Grade 2 steel with a bright, uncoated finish. It features a right-hand thread with a 2B fit class, making it a standard general-purpose fastener for use in non-critical structural and mechanical assemblies. The nut measures 11/16 inches across the flats and 23/64 inches in height. It conforms to ASME B1.1 and ASME B18.2.2 dimensional standards. Licensed tradespeople and assembly technicians install these nuts in a wide range of commercial and industrial applications where high-strength or military-specification hardware is not required.

This hex nut is suited for general-purpose bolted connections in residential construction, light fabrication, equipment assembly, and maintenance repair operations. The 3/8-16 UNC thread is one of the most common coarse-thread sizes found in structural framing hardware, HVAC mounting brackets, plumbing support hangers, and electrical panel components. The uncoated bright finish is appropriate for indoor or protected environments where corrosion resistance is not a primary concern.

Key Features

• 3/8-16 UNC coarse thread, right-hand direction with 2B fit class for standard tolerance assembly
• Grade 2 steel construction with hardness range of 68 HRB to 32 HRC
• 11/16 inches across flats for use with standard 11/16-inch wrenches or sockets
• Bright uncoated finish suited for dry or protected indoor service environments
• Meets ASME B1.1 and ASME B18.2.2 fastener dimensional standards
• Does not meet military specifications — intended for commercial-grade applications

Compatibility

Designed for use with any 3/8-16 UNC-threaded bolt or stud conforming to standard coarse-thread specifications in general-purpose mechanical and structural assemblies.

Installation Notes

Installation is performed by hand-threading onto a mating 3/8-16 UNC bolt or stud, then torquing with a standard combination wrench or socket. Always inspect threads for damage or contamination before assembly. Follow applicable torque guidelines per the governing code or engineering specification for the assembly — do not use Grade 2 hardware in applications requiring Grade 5, Grade 8, or higher-strength fasteners. Minimum order quantity is 100 pieces; plan fastener inventory accordingly.
