Value Collection 3-G00-205J6- Single Sheave Pulley

Product Description

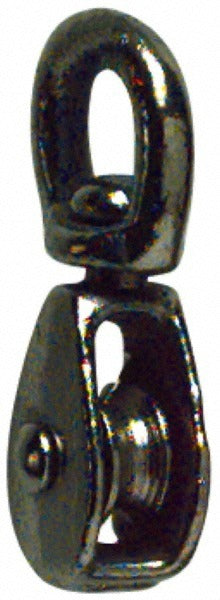

The VALUE COLLECTION 3-G00-205J6- is a swivel eye single sheave pulley designed for use with fibrous rope in light-duty rigging and material handling applications. The sheave measures 1/2 inch in outside diameter and accepts 5/32 inch diameter fibrous rope. The body is cast from gray iron with a zinc plated finish that provides basic corrosion resistance in dry to mildly humid environments. This pulley is typically installed by maintenance technicians, riggers, and tradespeople who need a compact, low-load block for redirecting rope runs in shops, utility areas, or light mechanical systems.

This swivel eye pulley suits residential and light commercial settings where fibrous rope is the rigging medium. Common applications include small hoists, clothesline or awning systems, stage rigging assists, and general utility cord routing. The swivel eye mount allows the pulley to orient freely under load, reducing rope twist and side loading on the anchor point. It is not rated for wire rope or synthetic braid lines.

Key Features

• 1/2 inch sheave outside diameter sized for 5/32 inch fibrous rope
• Swivel eye mount allows free rotation to reduce rope twist
• Gray iron construction provides solid, rigid sheave housing
• Zinc plated finish offers basic protection against surface corrosion
• Single sheave design for simple rope redirection in light-duty rigging

Compatibility

Designed as an OEM-style replacement or general-use single sheave pulley compatible with 5/32 inch diameter fibrous rope rigging systems.

Installation Notes

Install using appropriate hardware rated for the intended load at the swivel eye anchor point. Ensure the mounting surface and anchor fastener are capable of supporting the applied rope tension before use. Inspect the sheave groove and swivel action for free movement before putting the pulley into service. This pulley is intended for fibrous rope only and should not be used with wire rope or synthetic braid, which can damage the sheave groove.
