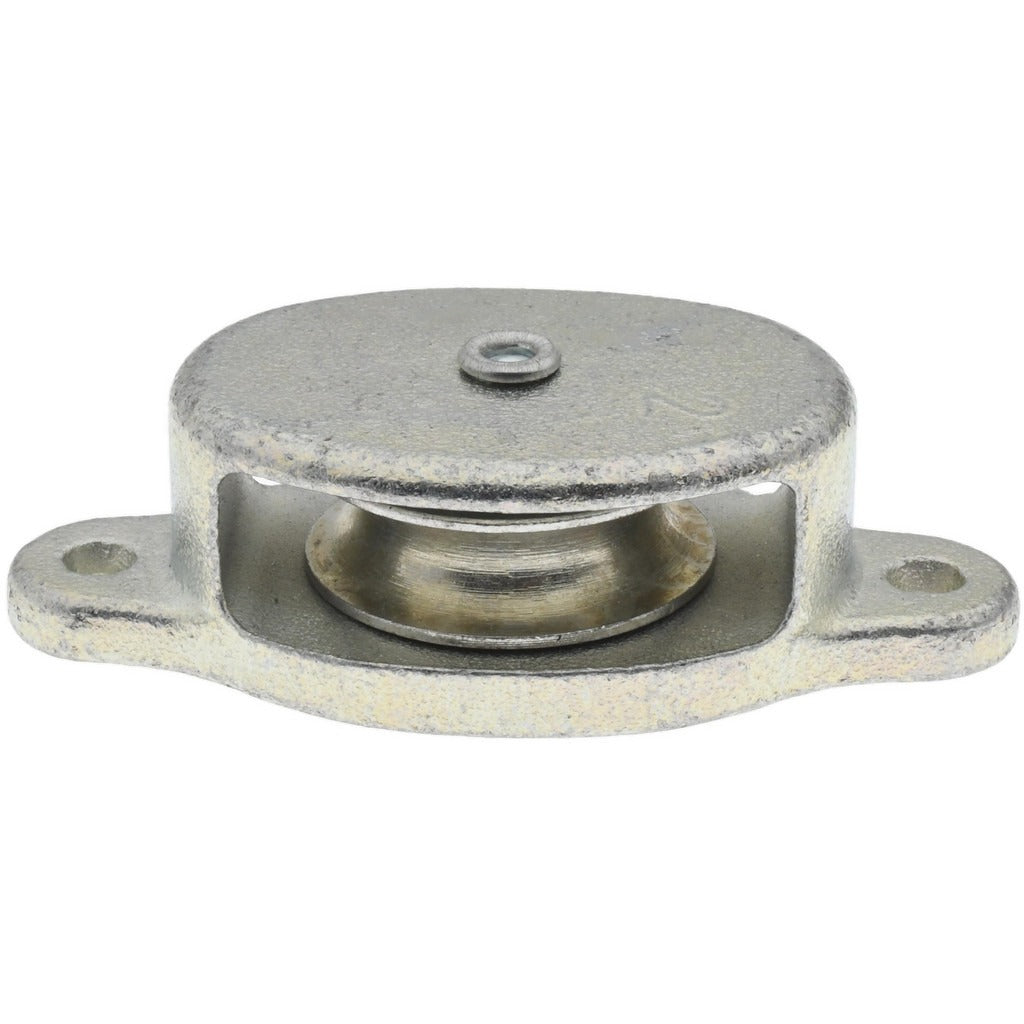

Value Collection 3-020-15-86- Guidance Pulley Sheave

Product Description

The VALUE COLLECTION 3-020-15-86- is a single-side, side-mount guidance pulley sheave designed to guide fibrous rope in light-duty rigging, material handling, and general industrial applications. The sheave features a 1-1/2 inch outside diameter and accepts fibrous rope with a 3/8 inch diameter. Mounting hole diameter ranges from 0.183 inch to 0.194 inch, providing a close-tolerance fit on standard fastener hardware. The body is constructed from malleable iron with a galvanized finish for corrosion resistance in damp or outdoor service environments.

This guidance pulley is suited for use in fixed single-sheave configurations where a rope must be redirected or kept on a set path. Typical applications include light material hoisting, safety rope guides, and low-load cable or rope management systems in industrial, maintenance, and trades settings. The side-mount design allows direct attachment to structural members or equipment frames without requiring a separate bracket assembly.

Key Features

• 1-1/2 inch outside diameter sheave sized for 3/8 inch fibrous rope
• Single-side, side-mount configuration for direct structural attachment
• Malleable iron construction for impact resistance in service environments
• Galvanized finish provides corrosion protection in damp or outdoor conditions
• Mounting hole diameter of 0.183 inch to 0.194 inch suits standard fastener hardware

Compatibility

Designed as an OEM-style replacement or direct-install guidance pulley for applications requiring a single-side, side-mount sheave compatible with 3/8 inch fibrous rope.

Installation Notes

Installation is typically performed by a maintenance technician or rigging professional. Verify that the mounting fastener diameter falls within the 0.183 inch to 0.194 inch mounting hole tolerance before securing the sheave. Ensure the rope path is aligned with the sheave groove to prevent side-loading and premature wear. Always de-tension and lock out the rope system before removing or installing any sheave component.
