Value Collection 3-010-18-86- Guidance Pulley Sheave

Product Description

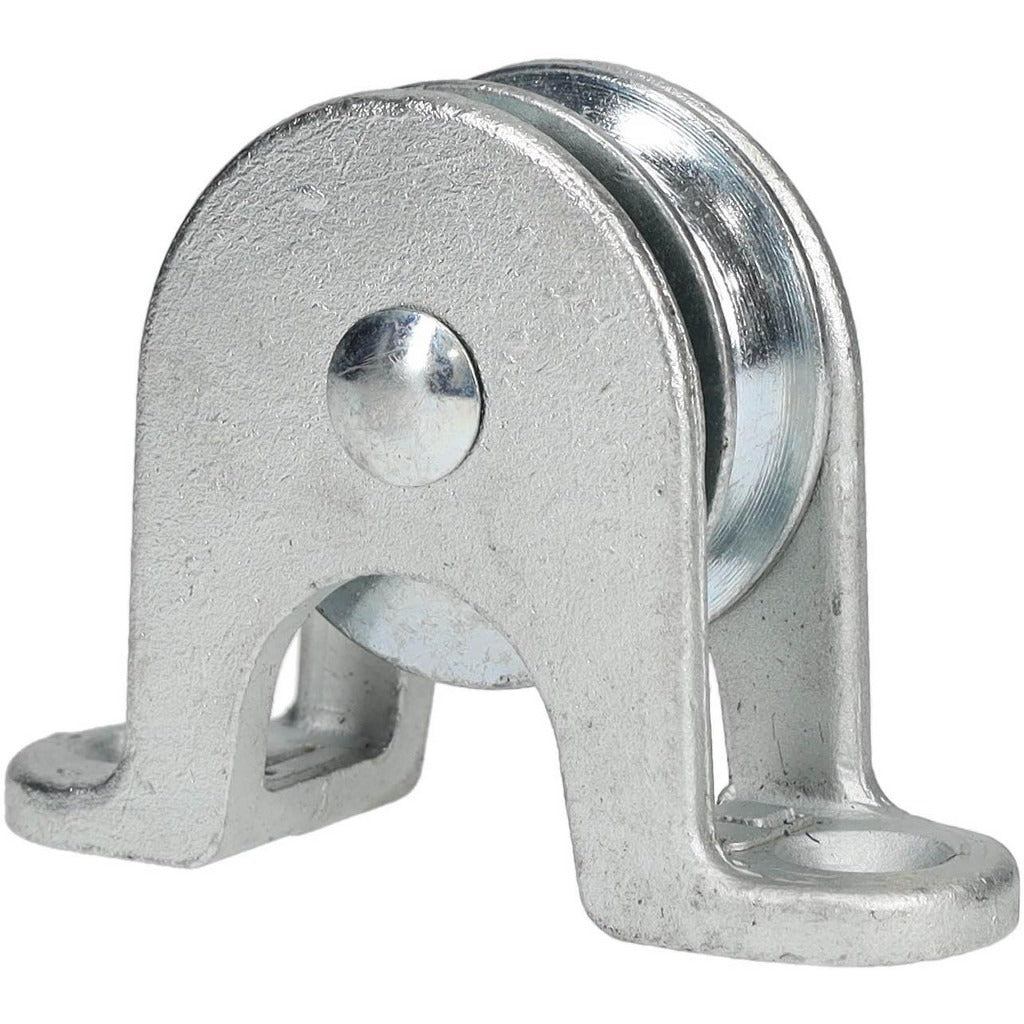

The VALUE COLLECTION 3-010-18-86- is a single open upright mount guidance pulley sheave designed to guide fibrous rope in light-duty rigging, lifting, and material handling applications. The sheave features a 1.5 inch outside diameter and accepts fibrous rope with a 0.375 inch diameter. Mounting hole diameter ranges from 0.209 inch to 0.220 inch, allowing installation on standard mounting posts or pins. The body is constructed from malleable iron with a galvanized finish, providing corrosion resistance in moderate indoor or sheltered outdoor environments. This type of pulley is typically installed by maintenance technicians, riggers, and general contractors working with rope-based load guidance systems.

This guidance pulley sheave is suited for residential and light commercial applications where fibrous rope must be redirected or guided along a fixed path. Common install scenarios include overhead lifting assemblies, cable management rigs, and manual material handling setups. The upright mount configuration positions the sheave in a fixed vertical orientation, making it appropriate for runs where rope direction changes are needed in a single plane. Its compact 1.5 inch OD keeps the assembly footprint small in space-constrained installations.

Key Features

• 1.5 inch outside diameter sheave sized for compact rigging assemblies
• Accepts 0.375 inch diameter fibrous rope
• Mounting hole diameter range of 0.209 inch to 0.220 inch for standard pin or post mounting
• Malleable iron construction provides durability under repeated load cycling
• Galvanized finish offers corrosion resistance in sheltered or moderate-exposure environments
• Single open upright mount design for straightforward inline rope guidance

Compatibility

Designed as an OEM-style replacement or supplemental component for light-duty fibrous rope guidance and rigging assemblies requiring a single open upright mount sheave configuration.

Installation Notes

Installation is typically performed by maintenance technicians or riggers familiar with rope and pulley systems. Confirm that the mounting pin or post diameter falls within the 0.209 inch to 0.220 inch mounting hole range before installation. Relieve all tension from the rope system before removing or installing any pulley component. Inspect the sheave groove and mounting hardware for wear or damage at each service interval.
