Value Collection 29W48 L6-30 250V 30A Locking Connector

Product Description

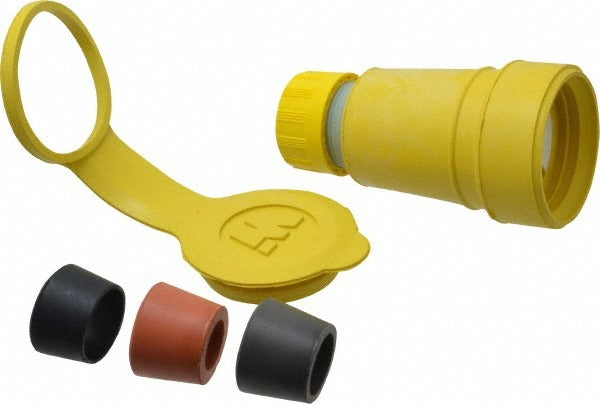

The VALUE COLLECTION 29W48 is an industrial-grade locking connector rated for 250 volts and 30 amps in a NEMA L6-30 configuration. Built with a rubber housing, it provides a water-tight, non-grounding connection in a 2-pole, 3-wire arrangement. The yellow color provides quick visual identification on the job. With an IP67 ingress protection rating, it is rated for environments where moisture and dust exposure are a concern. Licensed electricians and industrial maintenance technicians install this connector in heavy-duty power distribution applications where a secure, twist-lock connection is required.

This connector is suited for single-phase industrial electrical systems operating at 250 volts. The L6-30 locking configuration is commonly found in generator hookups, portable equipment power feeds, and industrial panel connections requiring a dependable mechanical lock to prevent accidental disconnection. The rubber construction provides flexibility and durability in demanding installation environments, including outdoor and wet-location applications where IP67-rated components are required by code or site specification.

Key Features

• NEMA L6-30 twist-lock configuration for secure, pull-resistant connection
• Rated 250 volts and 30 amps for heavy-duty single-phase applications
• IP67 ingress protection rating — dust-tight and water-tight
• Rubber housing provides flexibility and durability in harsh environments
• Non-grounding, 2-pole, 3-wire design
• Yellow color for quick visual identification in multi-connector installations
• CSA Certified and UL Listed (CSA File LR6837, UL File E10176)

Compatibility

Designed for use in industrial single-phase 250-volt power distribution systems requiring a NEMA L6-30 locking connector interface.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before making or breaking connections. Ensure the mating receptacle is also NEMA L6-30 rated and that the circuit ampacity does not exceed 30 amps. For wet or outdoor locations, verify that all connected components maintain the required IP67 rating to preserve water-tight integrity.
