Value Collection 287-6027 CAT30 Tool Holder Tightening Fixture

Product Description

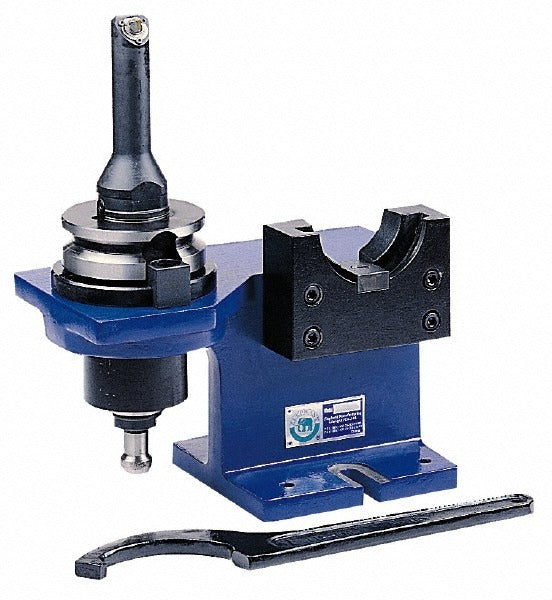

The VALUE COLLECTION 287-6027 is a 2-position CAT30 compatible tool holder tightening fixture designed for secure assembly and disassembly of CAT30 taper tool holders in machining environments. The fixture stabilizes the tool holder during tightening or loosening of retention knobs and collet nuts, reducing the risk of damage to the holder or spindle taper. With a head diameter of 3.74 inches and a base length of 8.26 inches, it provides a stable, low-profile platform for benchtop use. Weighing 15 pounds, the unit stays put during heavy torque applications. Machinists and tool crib technicians are the primary users of this fixture in CNC and manual milling operations.

This fixture is suited for tool rooms, CNC machining cells, and maintenance areas where CAT30 tooling is regularly assembled or changed. The 2-position design allows the operator to handle tool holders at two orientations or stage two holders at once, improving workflow efficiency during tooling changeovers. It is appropriate for both production environments and job shop settings that run CAT30 spindle tooling on vertical or horizontal machining centers.

Key Features

• Compatible with CAT30 taper tool holders for secure assembly and disassembly
• 2-position capacity allows staging or working with two holders simultaneously
• Head diameter of 3.74 inches provides firm seating of the tool holder
• Base length of 8.26 inches delivers a stable benchtop footprint
• 15-pound weight keeps the fixture stationary under high-torque tightening loads
• Low-profile overall height of approximately 5.04 inches keeps the work surface accessible

Compatibility

Designed for use with CAT30 taper tool holders as an assembly and tightening fixture for benchtop tooling operations.

Installation Notes

Place the fixture on a solid, flat benchtop surface before use. Ensure the tool holder is fully seated in the fixture pocket before applying torque to retention knobs or collet nuts. No permanent mounting or special tools are required for setup. Always follow the tool holder and retention knob manufacturer torque specifications when assembling tooling.
