Value Collection 27761 Square End Mill 3/4in 2 Flute Hss

Product Description

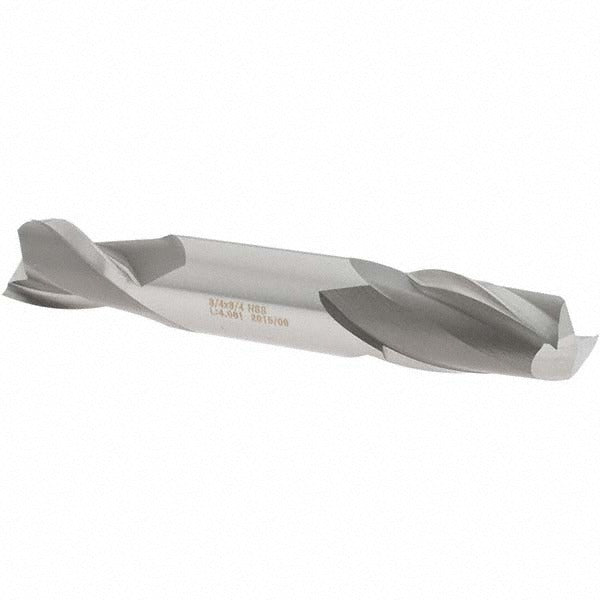

The VALUE COLLECTION 27761 is a double-end, two-flute square end mill designed for general-purpose milling operations in a machine shop or manufacturing environment. Manufactured from M42 high speed steel with a bright/uncoated finish, it offers solid performance on ferrous and non-ferrous materials without the added cost of a coating. The mill diameter is 0.75 inches, the length of cut is 1.3125 inches, and the overall length is 5 inches. The 30-degree right-hand spiral flute geometry promotes efficient chip evacuation and smooth cutting action. This tool is center-cutting, allowing direct plunge entry into a workpiece.

This end mill is suited for use in vertical machining centers, knee mills, and manual or CNC milling machines handling light-to-moderate material removal. The double-end configuration extends usable tool life by providing two cutting ends per tool. It is appropriate for slotting, profiling, and peripheral milling in job shop, toolroom, and production settings. Machinists and tool-and-die technicians are the primary users.

Key Features

• Double-end design provides two usable cutting ends per tool
• M42 high speed steel construction for durability on a wide range of workpiece materials
• 30-degree right-hand helix promotes chip evacuation and reduces chatter
• Center-cutting geometry allows direct plunge milling without a pre-drilled hole
• Bright/uncoated finish suitable for use with or without cutting fluid
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as a standard 0.75-inch shank square end mill compatible with milling machine collets, end mill holders, and tool holders accepting a 0.75-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing the tool from the holder. Ensure the shank is fully engaged in the collet or tool holder to the recommended engagement depth and that the holder is properly torqued before operation. Inspect the cutting edges for chips or damage before each use.
