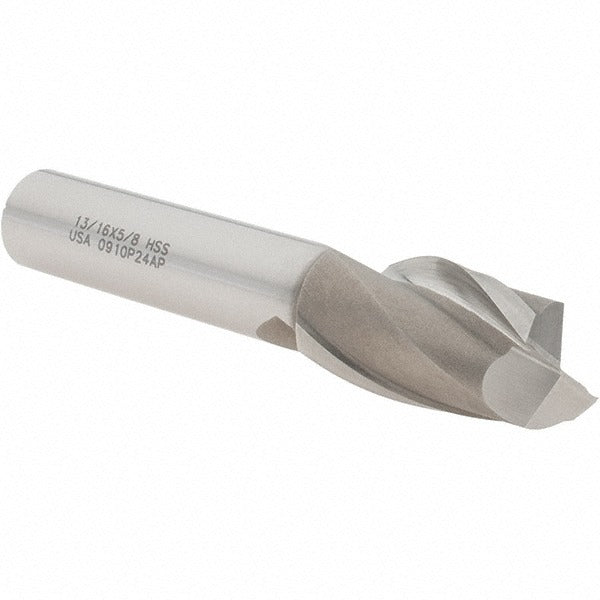

Value Collection 27656 Square End Mill 13/16 in 2 Flute Hss

Product Description

The VALUE COLLECTION 27656 is a single-end, 2-flute square end mill designed for material removal and slot milling in ferrous and non-ferrous metals. Manufactured from M2 high speed steel with a bright/uncoated finish, it features a 13/16-inch (0.8125 inch) cutting diameter and a 1-1/2-inch length of cut. The 30-degree right-hand spiral helix promotes efficient chip evacuation and reduces cutting forces during moderate-speed milling operations. This tool is center-cutting, allowing plunge entry as well as peripheral and slot cuts. Machinists and tool-and-die professionals working on manual mills and CNC machining centers will find this a dependable general-purpose cutter for everyday stock removal.

This end mill is suited for milling steel, stainless steel, cast iron, and aluminum and non-ferrous materials in job shop, maintenance, and production environments. Its fractional-inch shank diameter of 5/8 inch fits standard R8, CAT, and BT toolholders with a matching collet or end mill holder. The 3-5/8-inch overall length provides adequate reach for most standard workpiece setups without excessive overhang.

Key Features

• M2 high speed steel construction for general-purpose cutting in a wide range of workpiece materials
• 2-flute geometry allows efficient chip clearance in slotting and plunge-cut applications
• 30-degree right-hand helix reduces cutting forces and improves surface finish
• Center-cutting design permits direct plunge entry without pre-drilling
• Bright/uncoated finish suits use with cutting fluids across multiple material types
• Single-end configuration with 5/8-inch shank for compatibility with standard toolholding systems

Compatibility

Designed for use in standard milling machine toolholders accepting a 5/8-inch shank diameter. Suitable for cutting steel, stainless steel, cast iron, and aluminum and non-ferrous materials per primary workpiece material codes P, M, K, and N.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully powered down and locked out per applicable shop safety procedures. Secure the shank in a properly sized collet or end mill holder, ensuring adequate gripping depth to prevent pullout under load. Do not exceed the recommended depth of cut or feed rate for the workpiece material and machine rigidity. Inspect the cutting edges for wear or chipping before each use and replace the tool if damage is present.
