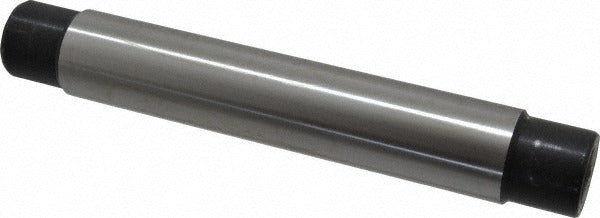

Value Collection 262-2112 Standard Lathe Mandrel

Product Description

The VALUE COLLECTION 262-2112 is a standard lathe mandrel designed to hold workpieces securely on a lathe during turning, grinding, or finishing operations. With a face diameter of 1-3/16 inches and an overall length of 7-3/4 inches, this mandrel provides a solid, centered mounting point for parts that require machining on their outer diameter after a bore has been established. It is a standard-duty tool used in machine shops, maintenance facilities, and production environments by machinists and tool-and-die technicians. The part weighs 2.6 pounds and ships as a single unit.

This mandrel is suited for general-purpose lathe work where a bored or drilled workpiece needs to be turned concentrically. Typical applications include finishing the OD of bushings, spacers, gears, and similar cylindrical components after boring. It is appropriate for use on engine lathes and toolroom lathes in both job-shop and production settings. The 1-3/16-inch face diameter makes it compatible with workpieces bored to that nominal size.

Key Features

• 1-3/16 inch face diameter for accurate workpiece seating
• 7-3/4 inch overall length provides stable support across the lathe centers
• Standard mandrel geometry for concentric OD turning after boring
• Single-piece construction at 2.6 pounds for rigid, chatter-resistant performance
• Sold as an individual unit with a minimum order quantity of 1

Compatibility

Designed as a standard lathe mandrel for use with engine lathes and toolroom lathes that accept between-centers workholding tooling sized for a 1-3/16 inch bore diameter.

Installation Notes

Installation is performed by qualified machinists following standard between-centers lathe setup procedures. Ensure the lathe is fully powered down and the spindle is locked before mounting or removing the mandrel. The mandrel should be lightly pressed or driven into the workpiece bore for a snug fit before mounting between centers. Do not exceed the lathe's rated spindle speed for the given workpiece weight and mandrel length.
