Value Collection 261404BR Dowel Pin 0.75x1.5in Alloy Steel Gr8

Product Description

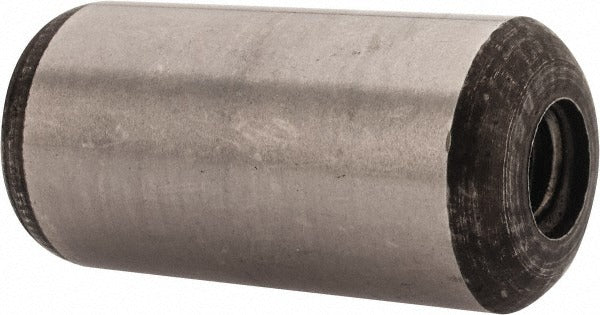

The VALUE COLLECTION 261404BR is a standard pull out dowel pin manufactured from alloy steel to Material Grade 8, meeting the dimensional and tolerance requirements of ASME B18.8.2. The pin measures 0.75 inches in diameter with an overall length of 1.5 inches and holds a diameter tolerance of 0.0002 inches, making it suitable for precision locating and alignment applications where repeatability matters. One end is rounded and one end is threaded, which allows the pin to be driven into a bored hole and later extracted with a threaded puller or slide hammer without damaging the mating components. Machinists, toolmakers, and maintenance technicians working on jigs, fixtures, dies, and mechanical assemblies are the primary installers of this fastener.

This pull out dowel pin is used in applications where a standard press-fit locating pin must be retrievable for disassembly or servicing. Typical installations include precision fixtures, machine frames, gearbox housings, die sets, and structural assemblies where consistent hole-to-hole alignment is required across repeated assembly cycles. The Grade 8 alloy steel construction provides the shear strength and hardness needed in high-load locating situations common in industrial manufacturing and maintenance environments.

Key Features

• Alloy steel construction to Material Grade 8 for high shear strength and hardness
• Complies with ASME B18.8.2 for standardized dimensional accuracy
• Diameter tolerance of 0.0002 inches supports precision locating and repeatable alignment
• One rounded end for guided insertion, one threaded end for pull-out extraction
• 0.75-inch diameter by 1.5-inch overall length fits common bored hole patterns in fixtures and assemblies

Compatibility

Designed as a standard ASME B18.8.2 pull out dowel pin for use in precision-bored holes in jigs, fixtures, dies, and mechanical assemblies requiring retrievable alignment fasteners.

Installation Notes

Installation is typically performed by a machinist or maintenance technician using a press or mallet to seat the pin into a precision-reamed hole. Ensure mating hole diameter and tolerance are matched to the pin specification before driving. De-energize and lock out all equipment before servicing assemblies containing dowel pins. Use the threaded end with an appropriate puller tool for extraction to avoid damaging the bore or surrounding material.
