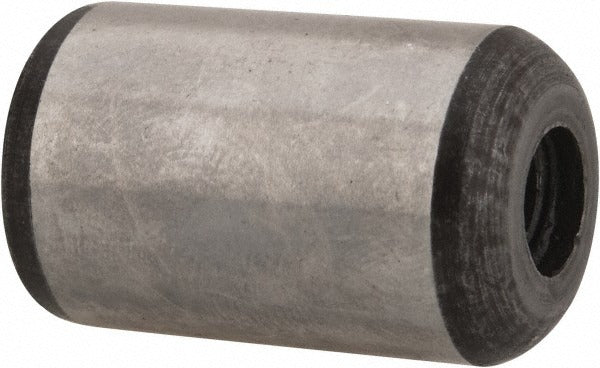

Value Collection 261364BR Pull Out Dowel Pin 5/8 in Alloy Steel

Product Description

The VALUE COLLECTION 261364BR is a standard pull out dowel pin manufactured from alloy steel to Material Grade 8. The pin measures 0.625 inches in diameter and 1 inch in overall length, with one rounded end and one threaded end to allow extraction with a standard threaded puller tool. It conforms to ASME B18.8.2, the governing dimensional standard for dowel pins used in precision alignment and assembly applications. Weighing approximately 0.01 pounds, this is a compact fastener intended for use in tooling, fixtures, jigs, and mechanical assemblies where tight positional tolerances are required.

Pull out dowel pins are used in industrial and manufacturing environments where components must be precisely aligned and also need to be periodically disassembled. The threaded end accepts a puller or slide hammer to extract the pin without damage to the mating bore. This pin is suited for use in machine tool fixtures, die sets, and structural assemblies where repeatable alignment is critical. It is installed by machinists, tool and die makers, and maintenance mechanics working in both light and heavy manufacturing settings.

Key Features

• Alloy steel construction, Material Grade 8 for high strength and hardness
• Conforms to ASME B18.8.2 dimensional standard
• One rounded end and one threaded end for pull-out extraction
• Diameter tolerance of 0.0002 inches for precision fit in close-tolerance bores
• Compact 1-inch overall length suitable for thin plate and shallow-bore applications

Compatibility

Designed as an OEM-style replacement or stock component for any application requiring an ASME B18.8.2 standard pull out dowel pin with a 0.625-inch diameter and 1-inch overall length in alloy steel Grade 8.

Installation Notes

Installation and removal should be performed by a qualified machinist or maintenance mechanic. Ensure the mating bore is clean, within the specified tolerance, and free of burrs before pressing the pin into place. Use a proper threaded puller or slide hammer on the threaded end for extraction — never drive the pin out from the threaded end with a punch, as this can damage threads. Follow applicable facility safety and lockout/tagout procedures before working on any assembled machinery.
