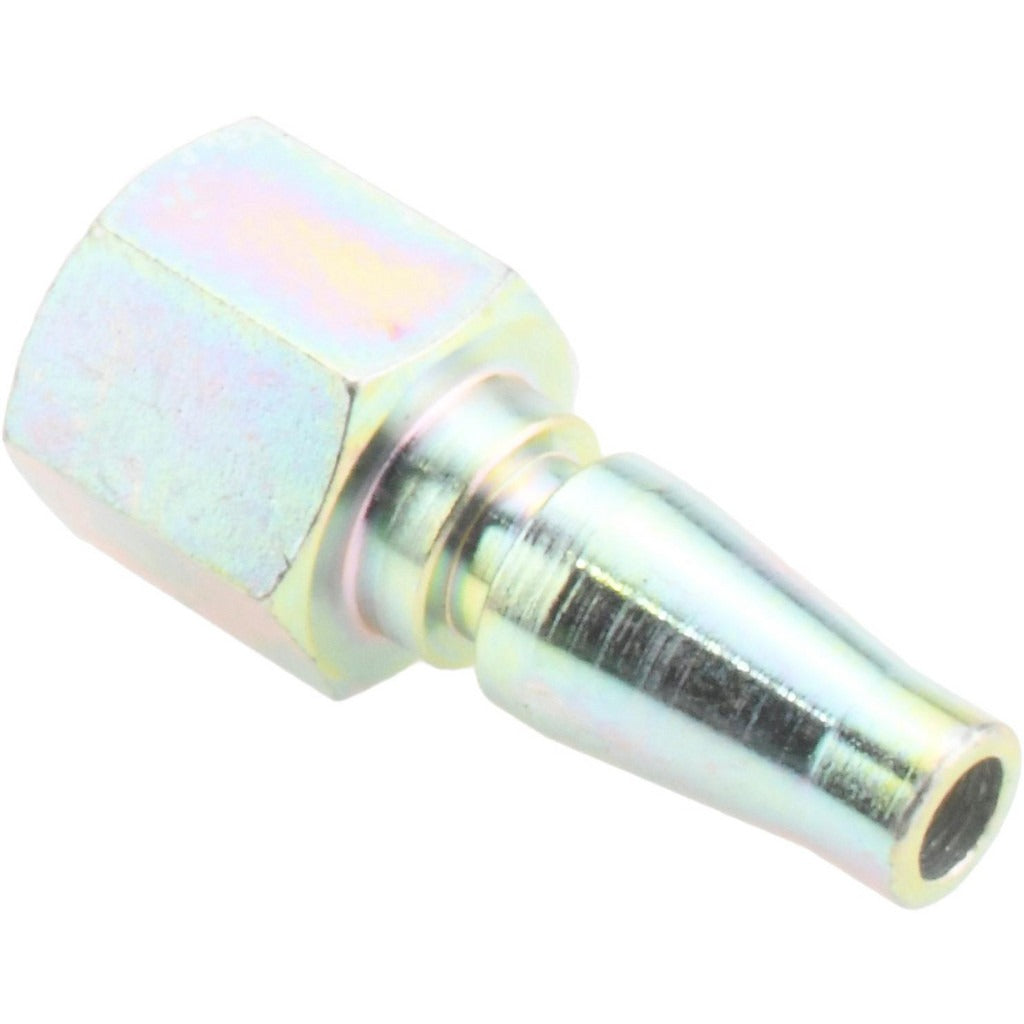

Value Collection 2542072521 Pneumatic Hose Coupling 1/4 in

Product Description

The VALUE COLLECTION 2542072521 is a steel pneumatic hose coupling connector designed for compressed-air systems in industrial, mechanical, and trade shop environments. This fitting uses a Schrader Twist-Lock interchange, which allows fast connect and disconnect of air hoses without the use of tools. The female NPT (FNPT) thread measures 1/4 inch, and the coupling accepts 1/4-inch inside-diameter hose. Maximum working pressure is rated at 215 psi. With a body diameter of approximately 14.30 millimeters and an overall length of 1.55 inches, this is a compact, standard-duty connector suited for routine air-tool and pneumatic-equipment hookups.

This coupling is used in residential and light commercial shop settings wherever compressed-air distribution is required. Common applications include connecting air hoses to compressors, quick-disconnect manifolds, air ratchets, impact wrenches, spray guns, and similar air-driven equipment. The Schrader Twist-Lock design is a widely used interchange standard, making this connector compatible with other Schrader Twist-Lock style hose ends and couplers commonly found in trade environments. HVAC technicians, plumbers, electricians, and general mechanical contractors who maintain shop compressors will find this a straightforward replacement or add-on fitting.

Key Features

• Schrader Twist-Lock interchange for tool-free connect and disconnect
• 1/4-inch FNPT thread for standard pipe-thread connections
• 215 psi maximum working pressure rating
• Steel construction for durability in shop and field use
• Compact overall length of 1.55 inches for tight-space installations
• Accepts 1/4-inch inside-diameter air hose

Compatibility

Designed as an OEM-style replacement or add-on connector compatible with Schrader Twist-Lock interchange pneumatic systems using 1/4-inch FNPT threaded connections.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed-air systems. Always depressurize the air line and bleed residual pressure before removing or installing any coupling. Apply thread sealant appropriate for pneumatic service to the FNPT threads before tightening. Follow applicable local codes and equipment manufacturer guidelines when integrating into an existing compressed-air distribution system.
