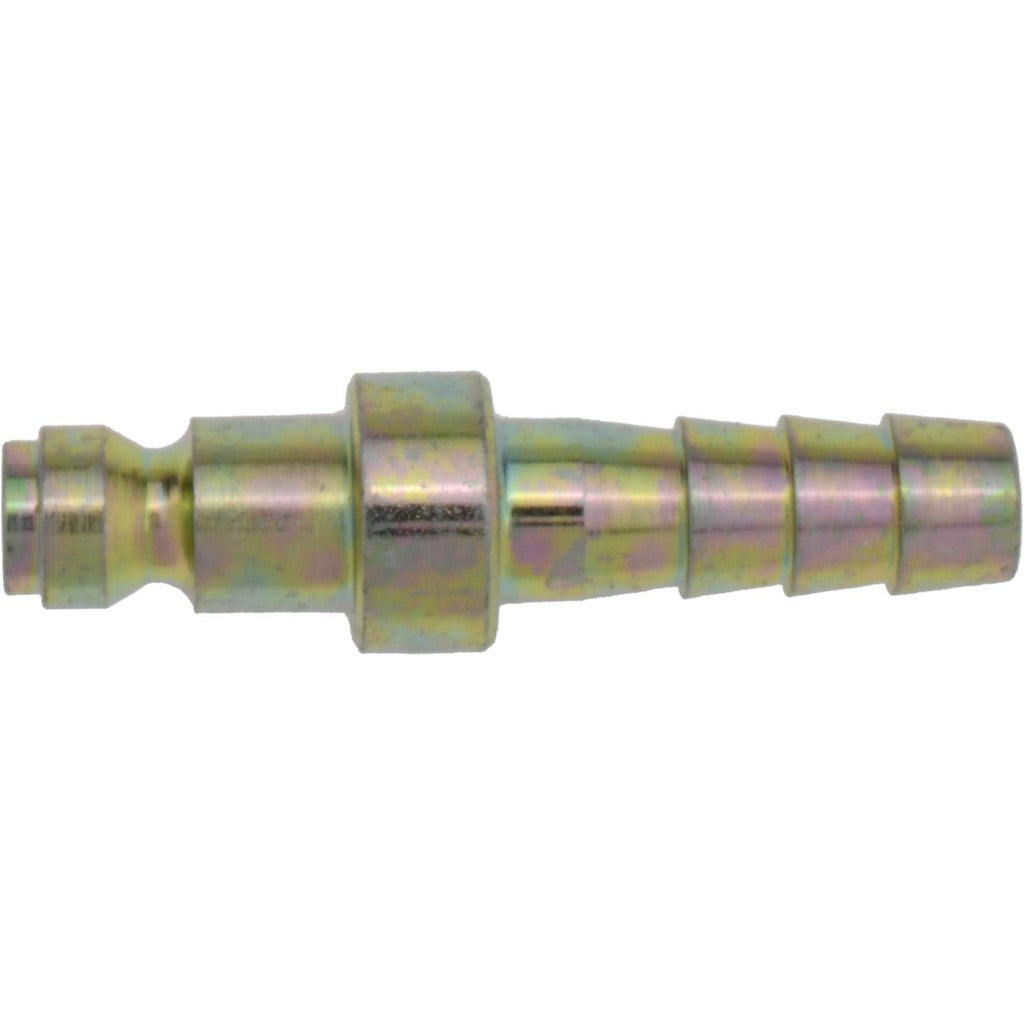

Value Collection 2532593721 Pneumatic Hose Coupling

Product Description

The VALUE COLLECTION 2532593721 is a steel pneumatic hose coupling connector designed for use with compressed air lines and pneumatic tool systems. Built to the Tru-Flate Automotive interchange standard, it features a 1/4 inch body diameter and a hose barb thread type that accepts 3/8 inch inside diameter hose. The coupling is rated for a maximum working pressure of 215 psi, making it suitable for standard shop and service-bay air supply applications. At 0.3 pounds, it is a compact, single-piece connector installed by HVAC technicians, automotive service professionals, and general mechanical tradespeople wherever a reliable air line connection is needed.

This coupling is used in residential and commercial shop environments where Tru-Flate Automotive interchange fittings are the established system standard. Typical applications include connecting pneumatic tools, air hoses, and compressor lines in automotive service bays, mechanical rooms, and light industrial settings. The hose barb design allows direct attachment to 3/8 inch ID flexible air hose without additional adapters. It is sold individually and is well-suited for both new installations and quick field replacements.

Key Features

• Tru-Flate Automotive interchange standard for broad compatibility with matching couplers and plugs
• 1/4 inch body diameter with hose barb connection for 3/8 inch ID hose
• Steel construction for durability under repeated connect and disconnect cycles
• Rated to 215 psi maximum working pressure for standard shop air service
• Compact profile at approximately 2 inches in length and 0.3 pounds
• Single-piece connector sold individually, no additional components required

Compatibility

Designed for use with Tru-Flate Automotive interchange pneumatic systems accepting a 1/4 inch body connector with a hose barb fitting sized for 3/8 inch inside diameter air hose.

Installation Notes

Depressurize and bleed the air line completely before removing or installing any pneumatic coupling. The hose barb connection should be secured with an appropriate hose clamp to prevent blowoff under pressure. Verify that the mating coupler body also conforms to the Tru-Flate Automotive interchange standard before installation. Do not exceed the 215 psi maximum working pressure rating of this fitting.
